110V Automatic Tape Winding Machine - 0.12"-0.98" Wire Diameter, 4500r/min Speed, Intelligent Wrapping for High Temp/Mica/Ceramic/Acetate Tape, 0.2"-1" Tape Width
Product details
| Management number | 220689129 | Release Date | 2026/05/03 | List Price | $1,083.60 | Model Number | 220689129 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Model: WX-303X Voltage: 110V Diameter of wire: 0.12-"0.98"(3mm-25mm) Main engine speed: 4500r/min Tape diameter: ≤ 3.9"(100mm) Tape width: 0.2"-1"(5mm-25mm) (other sizes can be customized) The inner hole size of the tape: Φ37mm, Φ32mm; usually Φ37mm (Please inform us of other sizes in advance) Winding length: Infinite length (More suitable for winding long wires, preferably longer than 20in/50cm) Scope of applicaiton: High temperature tape, mica tape, ceramic tape, PVC, vinyl, velvet cloth tape, acetate tape, electrical tape Net weight/Gross weight: 106.9lbs(48.5kg) / 134.5lbs(61kg)
- 【Ideal for Long Wire Winding】Perfect for long wires, with dual rollers controlling winding density for even, fast results. Features 4500r/min main engine speed, compatible with wires 0.12"-0.98" (3mm-25mm) in diameter.

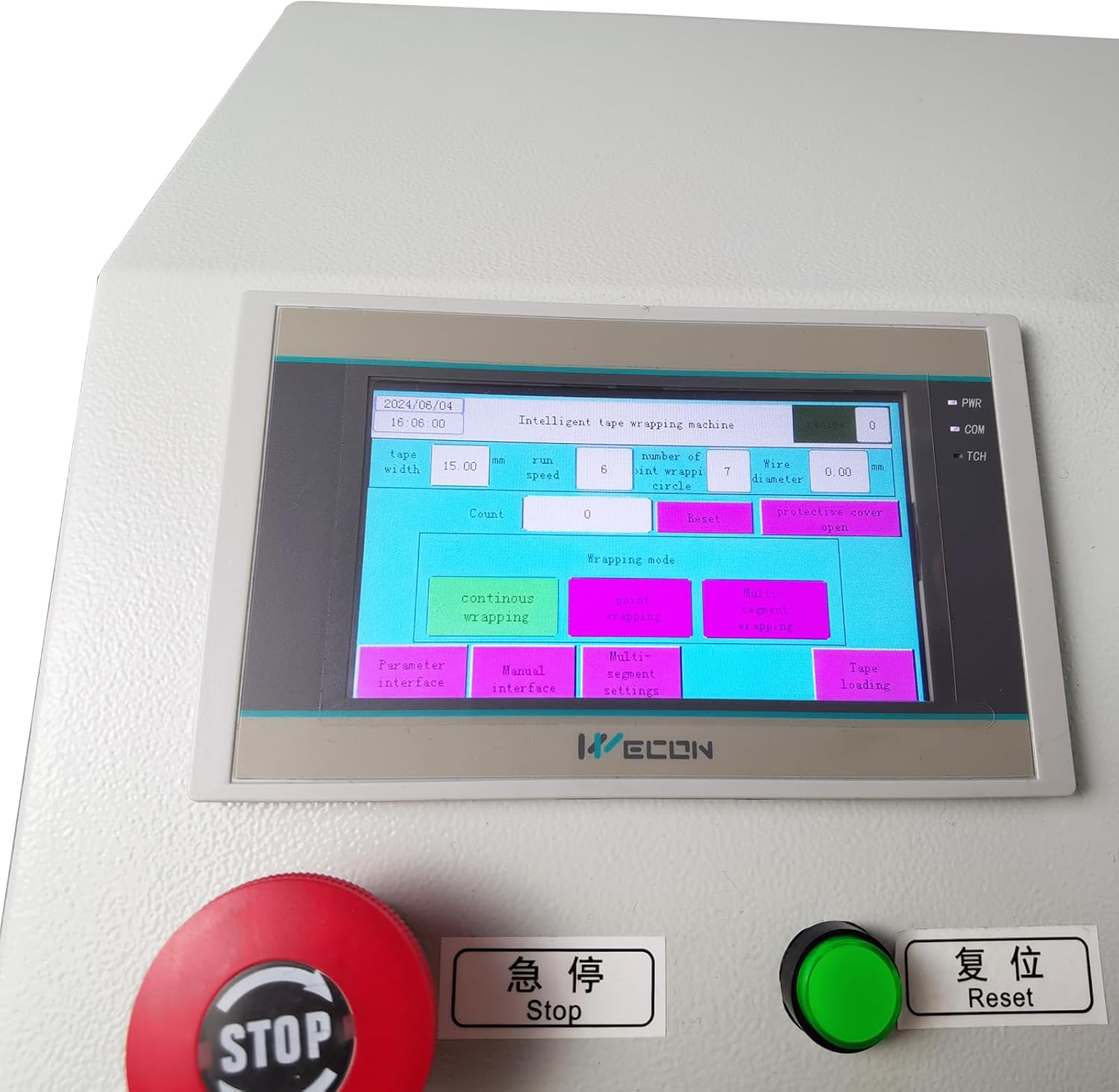

- 【Intuitive LCD Control Panel】Clear data display lets you set tape width, speed, wire diameter, and language easily. Equipped with emergency stop and reset buttons for safe, convenient operation.
- 【High-Speed Winding】Wraps a 6-meter wire in about 50 seconds. Supports switching between winding modes to meet diverse needs efficiently.
- 【Stable Winding & Easy Tape Changes】Fixing bracket keeps tape steady, ensuring wires stay centered for uniform winding. Simple to replace tapes—accommodates various sizes as needed. Wide Tape Compatibility
- 【Wide Tape Compatibility】Works with high-temperature tape, mica tape, ceramic tape, PVC, cloth tape, velvet tape, acetate tape, electrical tape, and more.
- 【Parameters】Voltage: 110V Diameter of wire: 0.12-"0.98"(3mm-25mm) Main engine speed: 4500r/min Tape diameter: ≤ 3.9"(100mm) Tape width: 0.2"-1"(5mm-25mm) (other sizes can be customized) The inner hole size of the tape: Φ37mm, Φ32mm; usually Φ37mm (Please inform us of other sizes in advance) Winding length: Infinite length (More suitable for winding long wires, preferably longer than 20in/50cm)
| UPC | 840403713530 |
|---|---|
| Brand Name | WYDDDARY |
| Item Weight | 134.48 Pounds |
| Manufacturer | WYDDDARY |
| Manufacturer Part Number | CD053044 |
