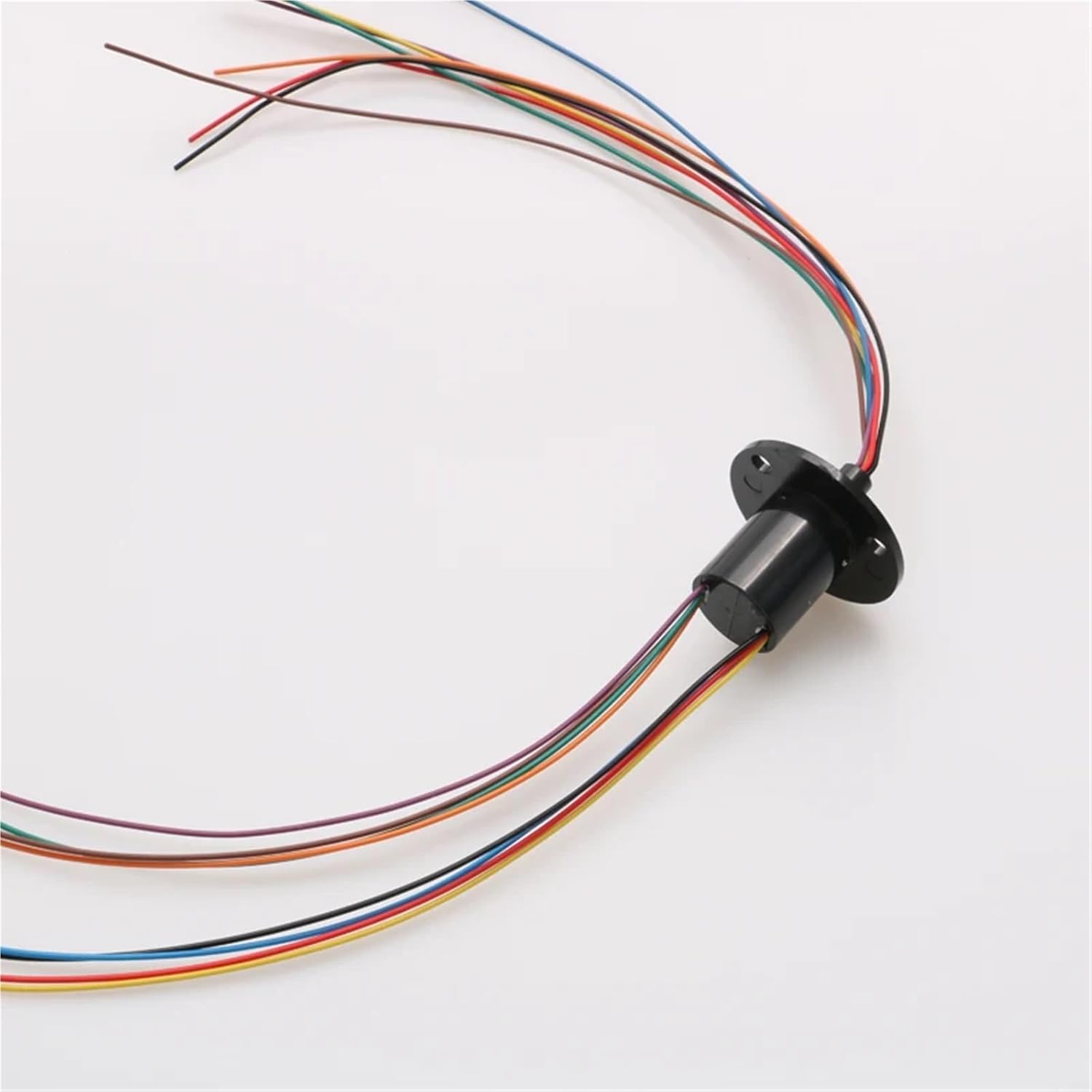

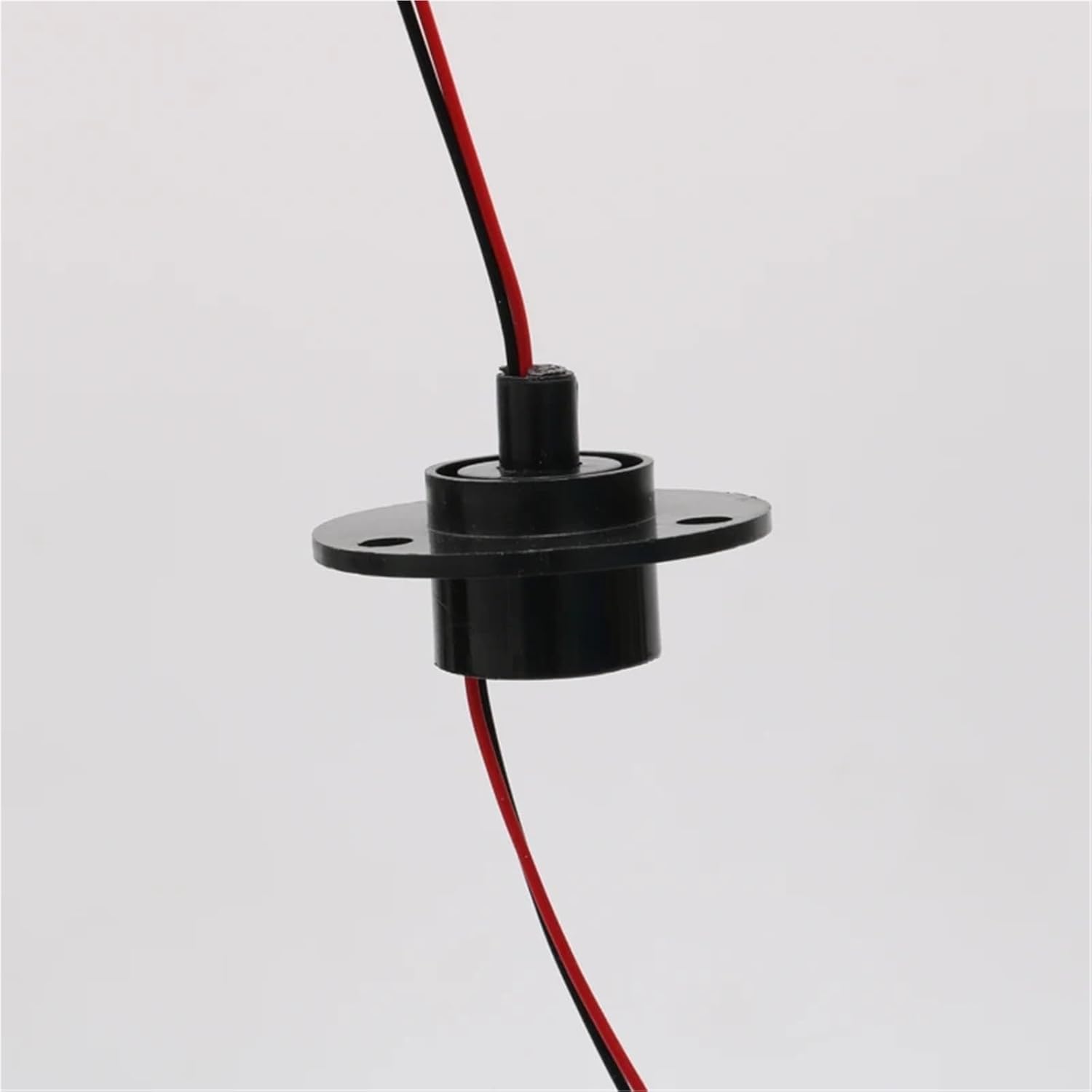

1PCS Wind Turbine Slip Ring 12 Channels Dia 22mm 5A High Current Rotary Electrical Connector Amusement Ride Slipring(Dia 22mm 8CH 5A)

Slip RingSpecifications:- Diameter: 22mm- Channel number: 2/3/4/6/8/12 Channels for option- Rated current: 5A- Speed: up to 200rpm- Rated voltage: 220VAC/DC- Operating temperature: -20 ~ +60 - Contact material: Gold/Gold- Wire material: Silver-plated- Wire length: standard 200mm- Compressive strength: between the two channels500V 50Hz- Insulation resistance: 1000M/500VDC- Dynamic resistance fluctuation value: minimum 10m- Shell material: Engineering plastics- Working life: 5 million rpm(depending on the working environment and speed)Description:- Wind power slip rings have good resistance to low temperature, high humidity, wind and sand, corrosion resistance, impact resistance, vibration resistance, stable performance and no maintenance. The service life can 10 million revolutions.- The slip ring is responsible for the power of the entire system in the wind power generation system. The control signal and data transmission function is a very critical component in the entire wind power system. Its precision, reliability and working life directly affect the performance of the wind power generation system.Package included:1pcs x slip ring==========Hign-concerned Chemical : NoneIs Electric : No BatteryWheelbase : ScrewsSize : Diameter: 22mmTechnical parameters : KV1100Model Number : for electric partsFor Vehicle Type : AirplanesTool Supplies : Assembled classFour-wheel Drive Attributes : AssemblageRemote Control Peripherals/Devices : amusement ride slipringUpgrade Parts/Accessories : conducting ringRC Parts & Accs : Slip RingMaterial : Composite MaterialUse : Vehicles & Remote Control Toys

• Slip Ring
• 1PCS Wind Turbine Slip Ring 12 Channels Dia 22mm 5A High Current Rotary Electrical Connector Amusement Ride Slipring
