20ft OFNP MTP/MPO Fiber Cable 12 Strand Female, MTP to MTP OM4 Multimode Fiber Optic Ptach Cord, Type B Plenum MTP Jumpers
Product details
| Management number | 215170037 | Release Date | 2026/04/12 | List Price | $30.00 | Model Number | 215170037 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
MTP-12 UPC (Female) to MTP-12 UPC (Female), 12 Fibers OM4 Multimode Type B MTP Jumper, Plenum (OFNP), Magenta

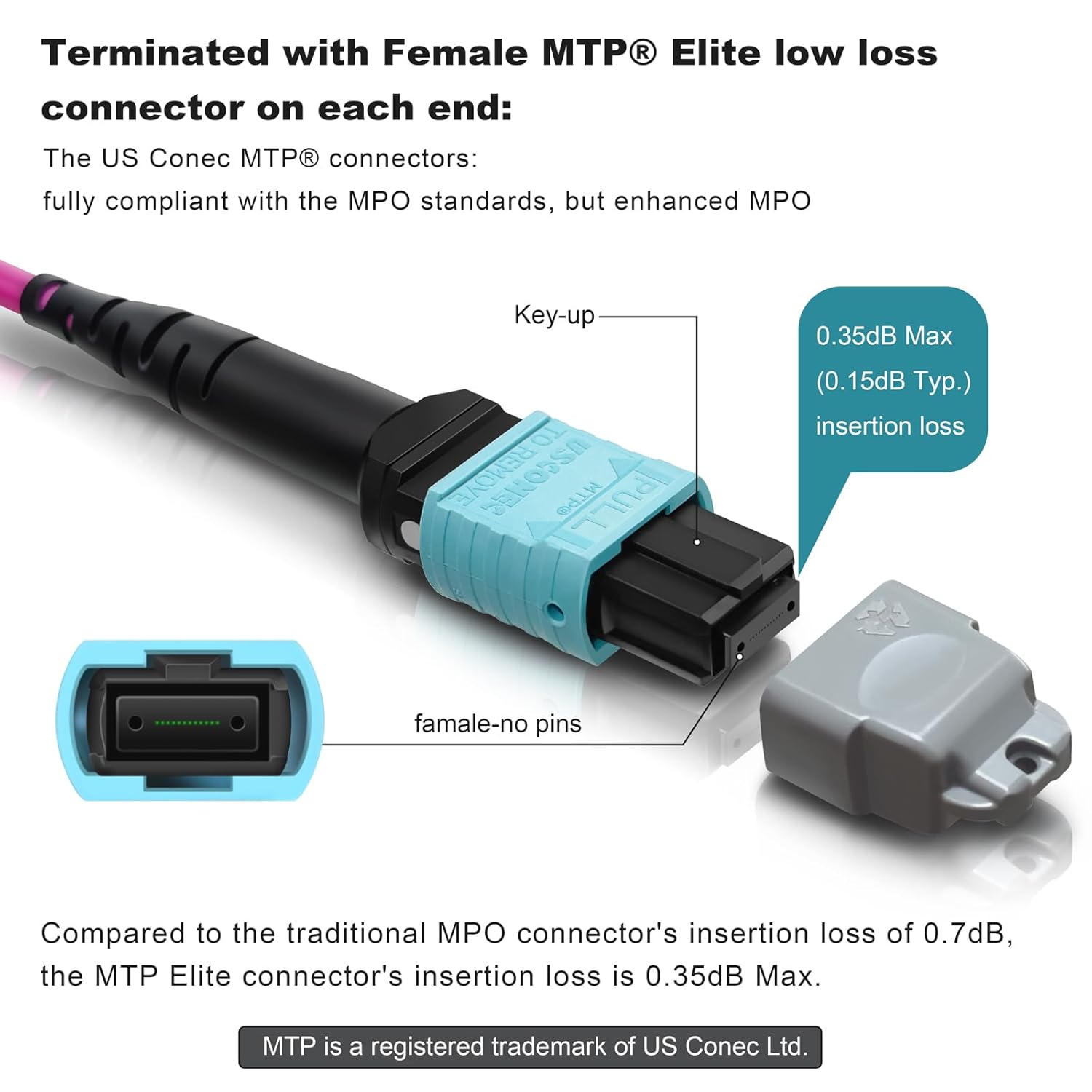

- Equipped with US Conec Female (no pins) MTP Elite Connectors: MTP Elite fully compliant with the MPO standards, but offer better mechanical designs and optical performances.
- 12 Fibers MTP OM4 Multimode Trunk Cables: MTP/MPO Cable designed with 12 strand OM4 fibers in a single cable, enhancing data rate performance by up to 12 times compared to traditional cables but take up less physical space.

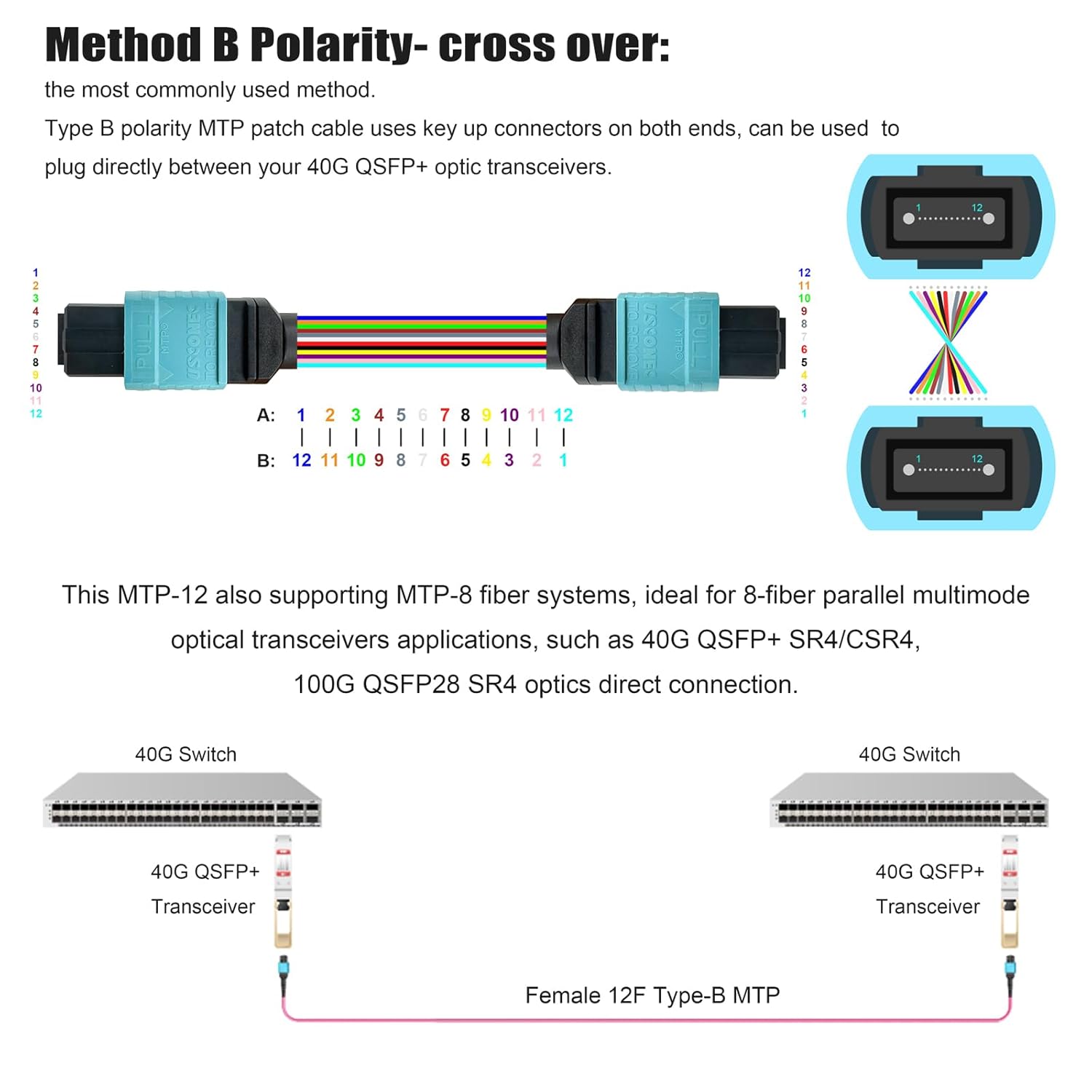

- MTP/MPO-12 OM4 Trunk also supports MTP-8 fiber systems, make it ideal for 8-fiber parallel multimode optical transceiver applications, such as 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection.
- Low-Loss 12 Core Type B MTP Fiber Patch Cable: Insertion Loss 0.35dB Max (0.15dB Typ.)
- Plenum (OFNP) Flame-Rating Outer Jacket: meets UL 910 regulations and substitutes for OFNR (riser) rated cable
| Color | Magenta |
|---|---|
| Brand Name | Banguptical |
| Cable Type | Fiber Optic |
| Item Shape | Round |
| Manufacturer | Banguptical |
| Connector Type | Mtp (Female) to Mtp (Female) |
| Number of Items | 1 |
| Connector Gender | Female-to-Female |
| Specification Met | UL |
| Compatible Devices | Network Switch, PC, Router, Server, multimode MTP/MPO QSFP+ SFP modules |
| Data Transfer Rate | 5 Gigabits Per Second |
| Indoor Outdoor Usage | Indoor, Outdoor |
| Compatible Phone Models | No Compatible Phone Models |
| Recommended Uses For Product | For Data Center High-density Applications Requiring Quick Infrastructure Deployment |
| Other Special Features of the Product | US Conec MTP Connector with Optimal 0.35dB Low Insertion Loss |
