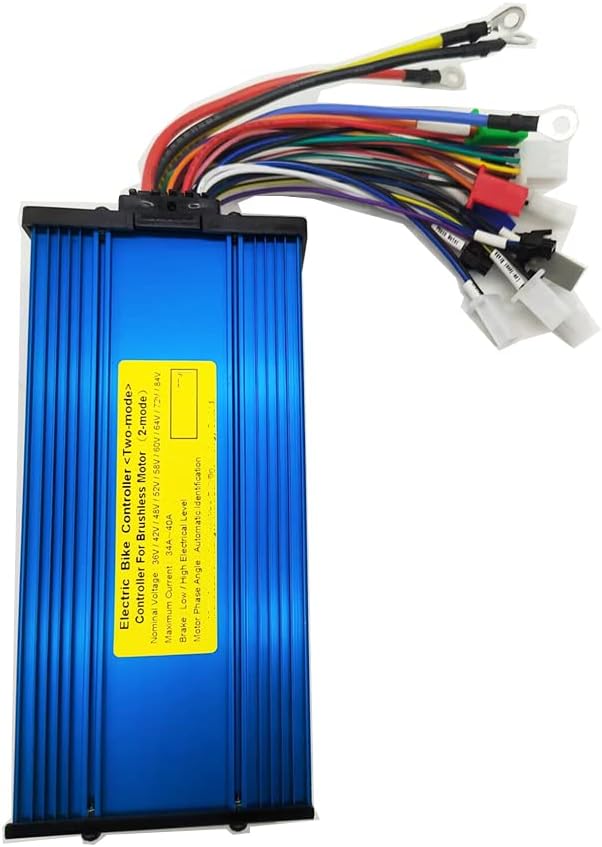

36V 48V 52V 60V 64V 72V 34A 35A 40A 1000W 1500W Universal Brushless Controller for Electric Scooter E-Bike
Product details
| Management number | 214454561 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 214454561 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
36V/48V/52V/60V/72V/84V 34A-40A 1000W-1500W-1800W Universal Brushless Controller Name: Intelligent dual-mode brushless controller Power: 1000W/1500W/2000W Voltage: 36V-84V Current limit: 40A Undervoltage: automatic identification MOS tube: 15mos Phase: automatic identification (60 ° / 120 ° all can fit) Brakes: low brake / high brake 1.hall 2.cruise 3.hall meter 4.intelligent recognition（self-learning） 5.high level brake 6.phase meter 7.PAS(pedal assist) 8.reverse 9.multiple data meter 10.low level brake 11.speed control handle （throttle） 12.electric door lock 13.three speed 14.anti-theft alarm signal 15.anti-theft alarm power 16.motor phase line 17.battery How to connect controller？ 1.connect the motor phase line(color to color） 2. connect the battery line(red:battery+ , black:battery-) 3. connect the controller throttle to throttle and need color to color connect,connect controller electric door lock to throttle electric door lock（if throttle not have electric door lock, controller electric door lock docking,so controller electric door must connect ） 4. connect the hall line(if motor without hall line, don't need connect) 5.docking the two self-learning lines, the wheel will forward or reverse. (1.if wheel forward ,Separate the self-learning line. 2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again,if wheel forward ,Separate the self-learning line.) 6.other functions can be connected as needed.
- It is a brushless design suitable for electric scooter e-bike, which is more stable and stable to use, and has a longer service life.
- This brushless controller is suitable for electric bicycle scooters and can control the rotational speed and direction of electric bicycle scooters.
- This controller is suitable for various brands and models of electric bicycle scooters, and can meet the needs of different users.
- It adopts advanced technology and has excellent performance and durability, which can ensure the safety and stability of the electric bicycle scooter.
- The controller has complete functions and simple wiring. Buyers can replace old accessories according to their own needs.
| Size | middle |
|---|---|
| Color | blue |
| Material | Aluminum |
| Brand Name | ChongXiao |
| Model Name | 36V-84V 34A-40A controller |
| Manufacturer | ChongXiao |
| Package Weight | 0.7 Kilograms |
| Suggested Users | unisex-adult |
| Included Components | controller |
| Warranty Description | No |
| Item Package Dimensions L x W x H | 9.17 x 5 x 2.05 inches |
