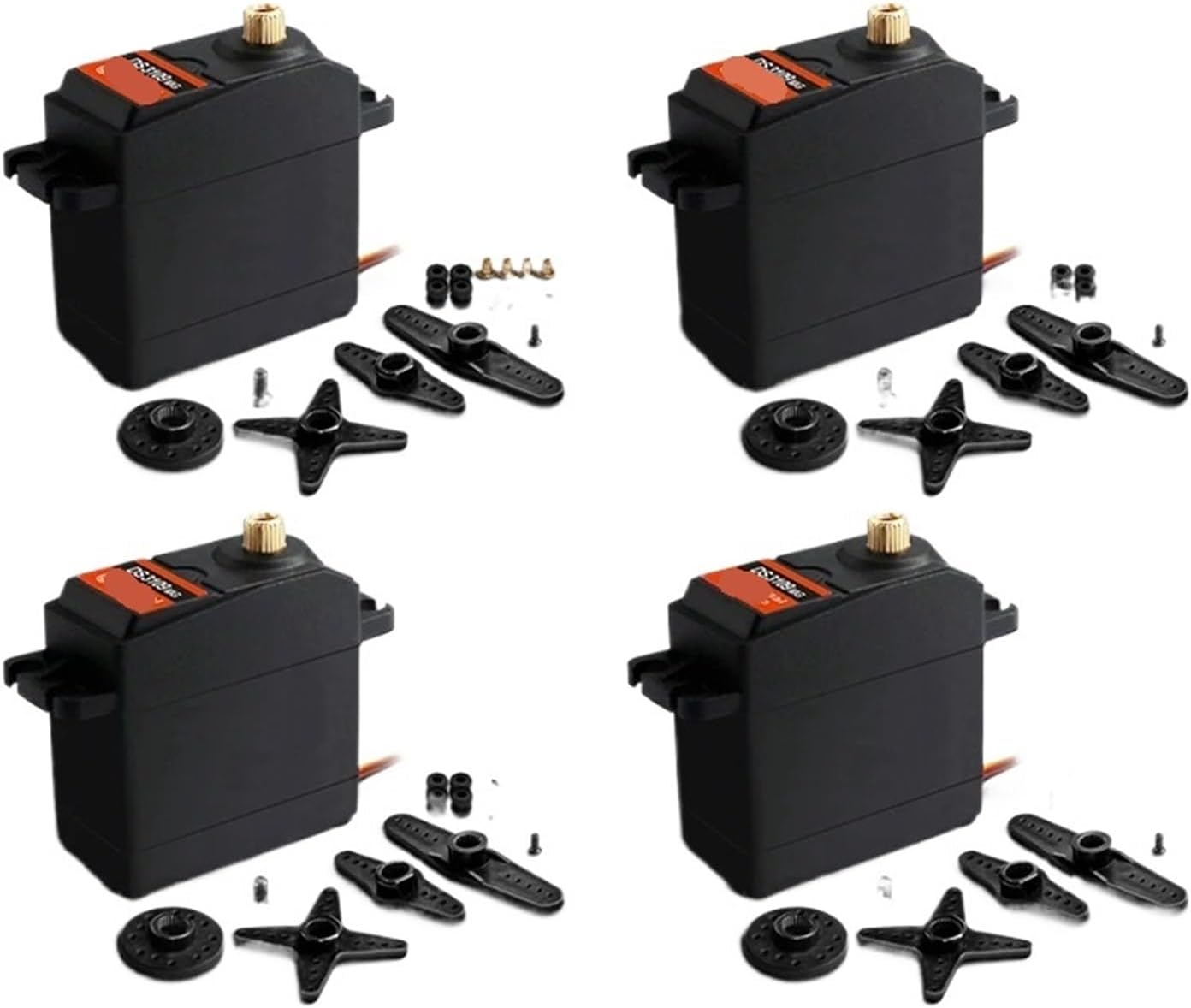

4pcs DS3115 DS3120 DS3109 Metal Gear Digital Standard Servo(DS3115-270)
Product details
| Management number | 213381819 | Release Date | 2026/04/12 | List Price | $65.70 | Model Number | 213381819 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

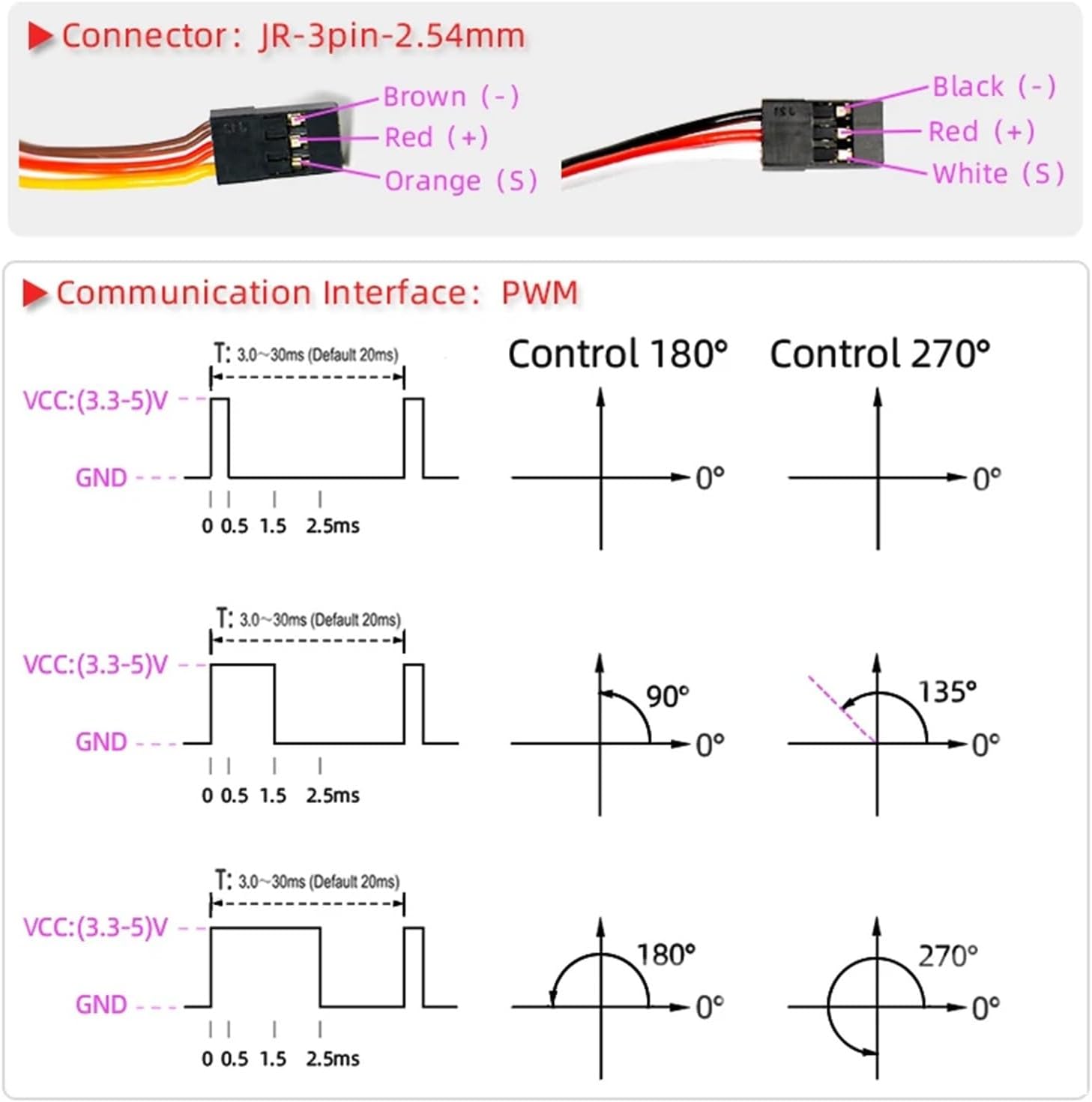

Servospacking list:4x digital servos4 Accessory BagsApplicable environmental conditions:1. Storage temperature range: -30°C~80°C2. Operating temperature range: -25°C~70°CMechanical Specifications:1. Size: 40.0*20.5*40.5mm2.Weight: 58g±2g3. Limit angle: 360°4. Bearing: 2BB6. Shell: alloy shell7.Connecting wire: 320mm±5mm specifications:1. Operating voltage range: 4.8-7.2V2. Command signal: pulse width modification3. Amplifier type: digital controller4. Pulse width range: 500-2500usec5. Neutral position: 1500usec6. Operating angle: 180±3°(PWM500-2500usec) or 270±3°(PWM500-2500usec)7. Dead zone width: 3usec8. Rotation direction counterclockwise: (1000-2000usec)If you need to buy a small number of servos for testing, look for the 1X link in the store!
- Servos
| Size | DS3115-270 |
|---|---|
| Color | One Color |
| Brand Name | XTPGJGJK |
| Model Name | XTPGJGJK |
| Unit Count | 1.0 Count |
| Manufacturer | XTPGJGJK |
| Model Number | XTPGJGJK |
| Material Type | Acrylic |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
| Number of Items | 1 |
| Is Assembly Required | No |
| Are Batteries Required | No |
| Manufacturer Part Number | XTPGJGJK |
| Manufacturer Minimum Age MONTHS | 1.0 |
