5601240NX 5494878RX 6.7L Cummins Turbo Turbocharger Actuator Kit Compatible with 13-18 Dodge Ram 2500 3500 4500 5500 Diesel Holset HE300VG Replace# 68481772AA with Turbine Calibration Module

Installation Step:1.Please stop the engine before installation,make sure the turbocharger actuator has cooled down.2.Release the liquid coolant.3.Dismantle the right wheel and also the interior lining panel.4.Dismantle the original turbocharger actuator and clean up the residues.5.There's no need to reset the sector gear manually, just install the turbocharger actuator on the turbine. Make sure there is a sealing gasket and no gap between the actuator and the turbine. Fasten the four screws.6. Plug the power from the vehicle in the actuator.7.Turn the key to RUN gear(don'to press the brake,just turn on the power,don't start the engine).8.Plug the calibrator into the OBD port.9.The red indicator light of the calibrator is always on,and the green indicator light keeps flashing.10.Press the calibration button,the yellow light will turn on briefly,and the turbine will start calibration.You can hear the sound of the turbine actuator moving back and forth. Wait for about 15 seconds, and the calibration will be completed. The red light will remain on and the green light will flash; Calibration success light is on steadily if the calibration is successful. lf the calibration fails, the calibration fail light will be on steadily.11.lf calibration fails, please check if the connecting wire is firm，if the actuator is installed correctly,then do calibration again. If the sound of calibration operation can be heard during calibration, it indicates that both the calibrator and actuator can work. Please check if the plugs of the relevant sensors (such as intake pressure/temperature, exhaust temperature sensors) are oxidized and if the wiring harness is worn.12.After everything is all right,add liquid coolant,then start the engine. Check if it works normally and if there'sleakage.13.Installthe interior lining panel and the wheel.14.Above is the installation and adjust method of HE300vG. If you need to installiton an HE351VE, you just need to add a special wire harness(It was included in our package.)Calibration Step:Condition 1: Actuator had been removed from turbo: press IP Key - Assemble the Actuator with turbo and then - press IC KeyCondition 2: Actuator had been calibrated and assembled with turbo: press IC KeyWarning 1: Any time when Reset key is pressed, make sure Actuator had been removed from turbo, and then IP->ICWarning 2: When IP success(digital tube display IP-S), make sure turbo gear is in the left limitation location and then assemble actuator. If not, calibration cannot success.Operating voltage: 8-28V ((Usually 12V or 24V)Operating temperature: -40~125°CFits:2013-2018 Dodge Ram 2500 ISB 6.7L Diesel2013-2018 Dodge Ram 3500 ISB 6.7L Diesel2013-2018 Dodge Ram 4500 ISB 6.7L Diesel 2013-2018 Dodge Ram 5500 ISB 6.7L DieselReplace#68481772AA 5601240NX 5601240 68481772AA 5494878RX 5452689 68445522AA 4034090 4034315 6382096RX 5494878H 4034309RX4034168NX 4034309H 68232771AA 68244609AA 68307025AA 32704600HX 5459710RX 68210648AA 68212738AA 68245792AA 68253983AA 68295438AA 68297874AA 68321377AA

• 【FUNCTION】Ram 3500 turbo actuator can significantly increase the power and torque of the engine without increasing the engine displacement, increase the speed of the turbine, which can generate a larger intake boost pressure, increase the air intake, and improve the low-speed performance of the engine to keep your vehicle in tip-top condition at all times.

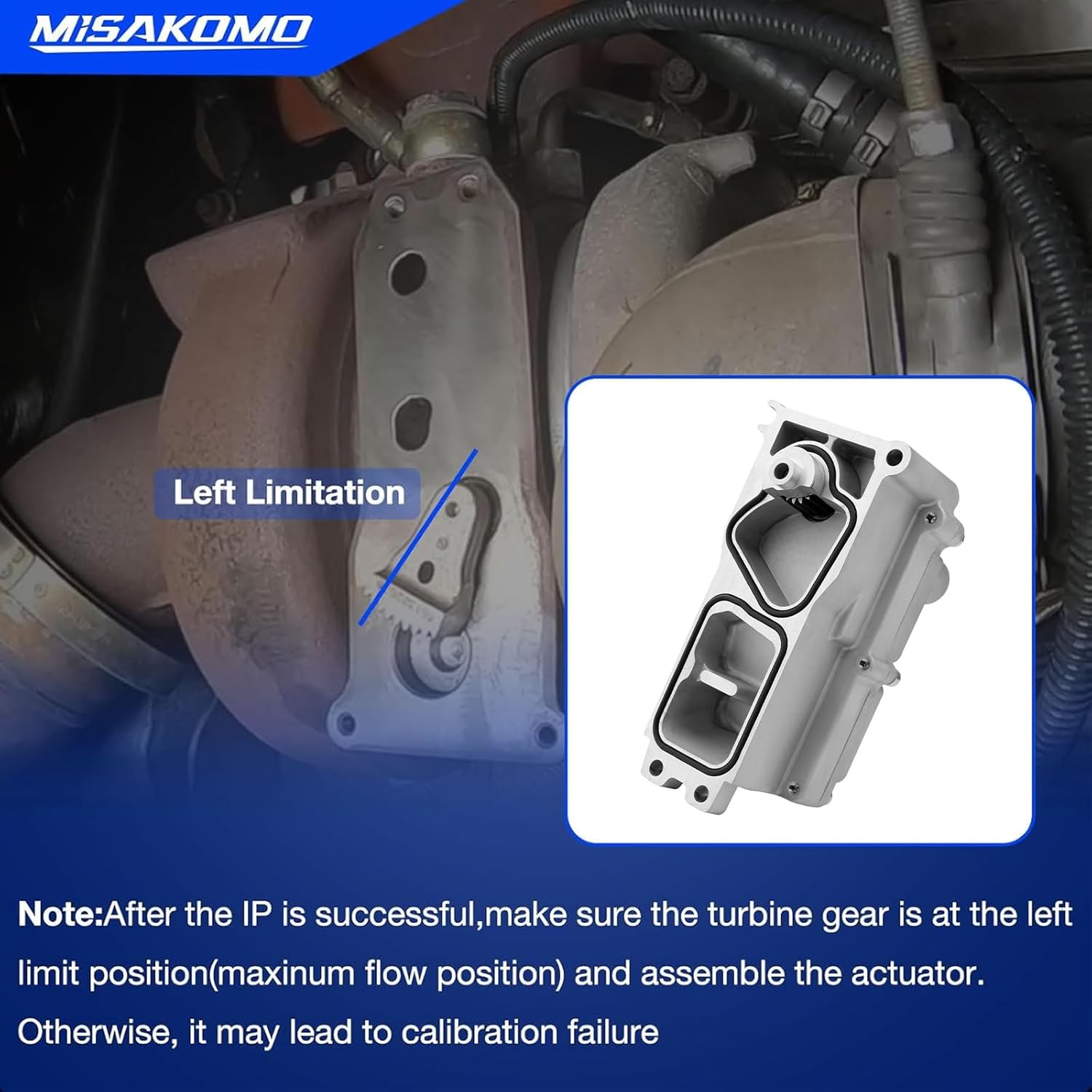

• 【INSTALLATION NOTE】After the IP is successful, make sure the turbine gear is at the left limt position (maxinum flow position) and assemble the actuator. Otherwise, it may lead to calibration failure.Please be sure to watch the calibration video before installing and calibrating.
• 【Compatible With】Turbo actuator calibrate kit compatible with 2013-2018 Dodge Ram 2500 ISB 6.7L Diesel, 2013-2018 Dodge Ram 3500 ISB 6.7L Diesel, 2013-2018 Dodge Ram 4500 ISB 6.7L Diesel, 2013-2018 Dodge Ram 5500 ISB 6.7L Diesel. And including 1 turbo actuator,1 turbine calibration module, 1 Adapter Harness, 2 gasket,4 Screw,4 tie and instructions with installtion video.
• 【Replaces OEM】68481772AA 5601240NX 5601240 68481772AA 5494878RX 5452689 68445522AA 4034090 4034315 6382096RX 5494878H 4034309RX 4034168NX 4034309H 68232771AA 68244609AA 68307025AA 32704600HX 5459710RX 68210648AA 68212738AA 68245792AA 68253983AA 68295438AA 68297874AA 68321377AA
• 【24-MONTH WARRANTY】 If for any reason at all, you are not fully satisfied with the Ram 5500 turbocharger actuator , simply contact us through amazon message at any time. We will provide comprehensive quality assurance for our product.
