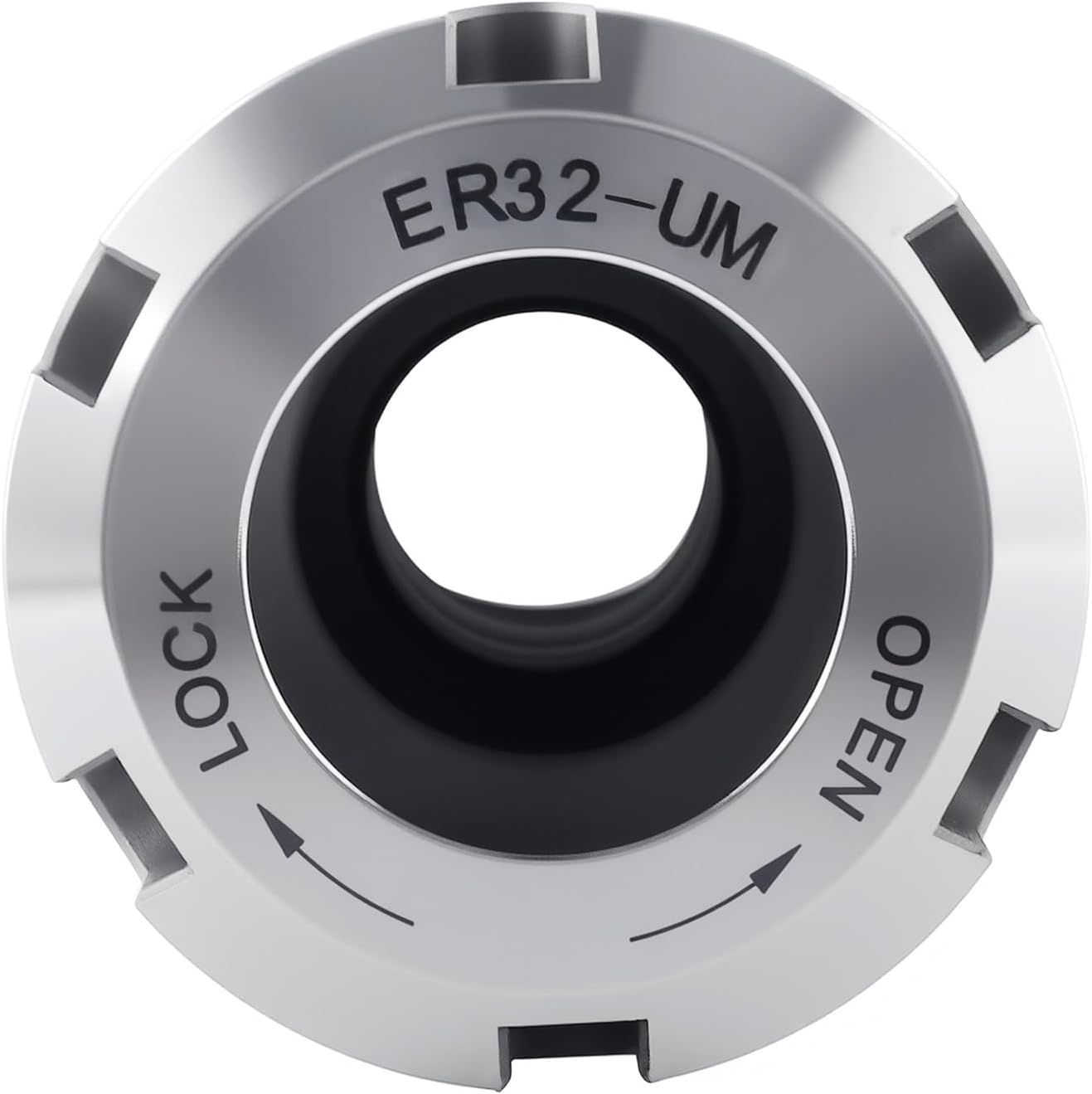

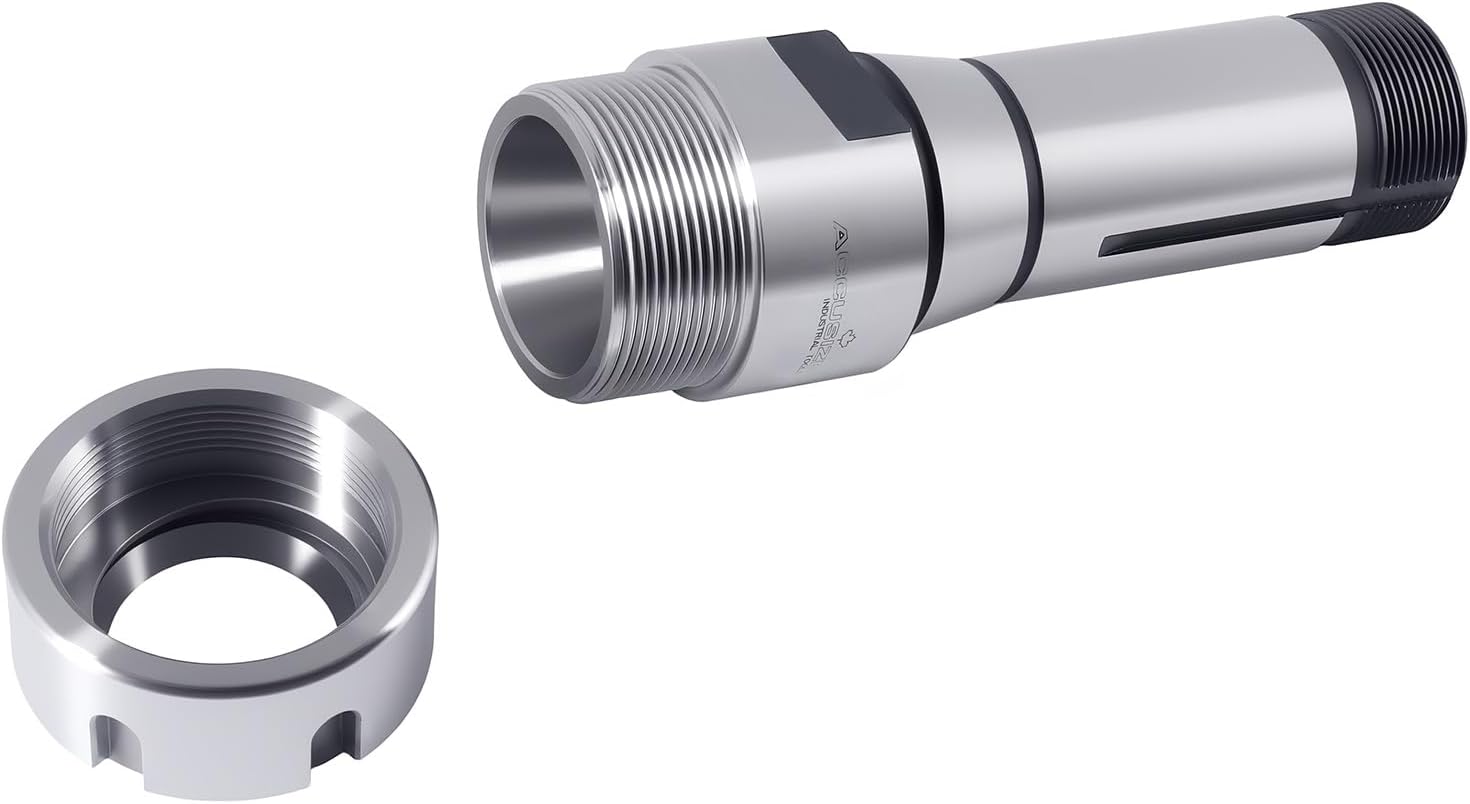

Accusize Industrial Tools 5C Shank ER32 Collet Chuck, 1.238"-20UNF External Thread, 1.041"-24UNF Internal Thread, Max T.I.R. 0.0002'' O.D to I.D., 0223-0245
Product details
| Management number | 210016423 | Release Date | 2026/04/02 | List Price | $24.77 | Model Number | 210016423 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Made of high-grade tool steel, Max RPM: 8000rpm. Shank: 5C; ER Collet Style: ER32; Gage Length: 2.16"; Collet Nut Diameter: 1.97"; External Thread: 1.238"-20UNF; Internal Thread: 1.041"-24UNF.
- Hardened and precision ground. Max TIR 0.0002" O.D to I.D.
- Ultra-precision workholding tool. Ensure all parts are wiped clean before installation to maintain accuracy. Improper installation may affect performance.
- Machine spindle accuracy plays a crucial role. To achieve the best results, ensure the spindle of the machine tool has minimal error and use high-precision ER collets. Many collets are marked as 0.0005", but some may not meet this tolerance.
- 5C shank ER collet chucks are used with collet fixtures and lathe spindles. The ER32 nut is compatible with ER32 collets, allowing secure clamping of round-shank tools. These 5C shank ER collet chucks exceed the market standard in quality, with TIR less than 0.0002".
| UPC | 663566036854 |
|---|---|
| Capacity | 0.79 Inches |
| Lock Type | Manual (keyless), Independent |
| Brand Name | Accusize Industrial Tools |
| Unit Count | 1.0 Count |
| Handle Type | hand-tightened |
| Item Weight | 0.7 Kilograms |
| Thread Size | 1.238-20UNF |
| Manufacturer | Accusize Co., Ltd. |
| Model Number | 0223-0245 |
| Item Diameter | 1.97 Inches |
| Material Type | Alloy Steel |
| Item Type Name | workholding-collets |
| Compatible Devices | 5C collet fixtures, Lathe, Milling Machine |
| Included Components | 5C ER32 Collet Chuck Body, Case, ER32 Collet Nut |
| Manufacturer Part Number | 0223-0245 |
| Manufacturer Warranty Description | 30 Days |
