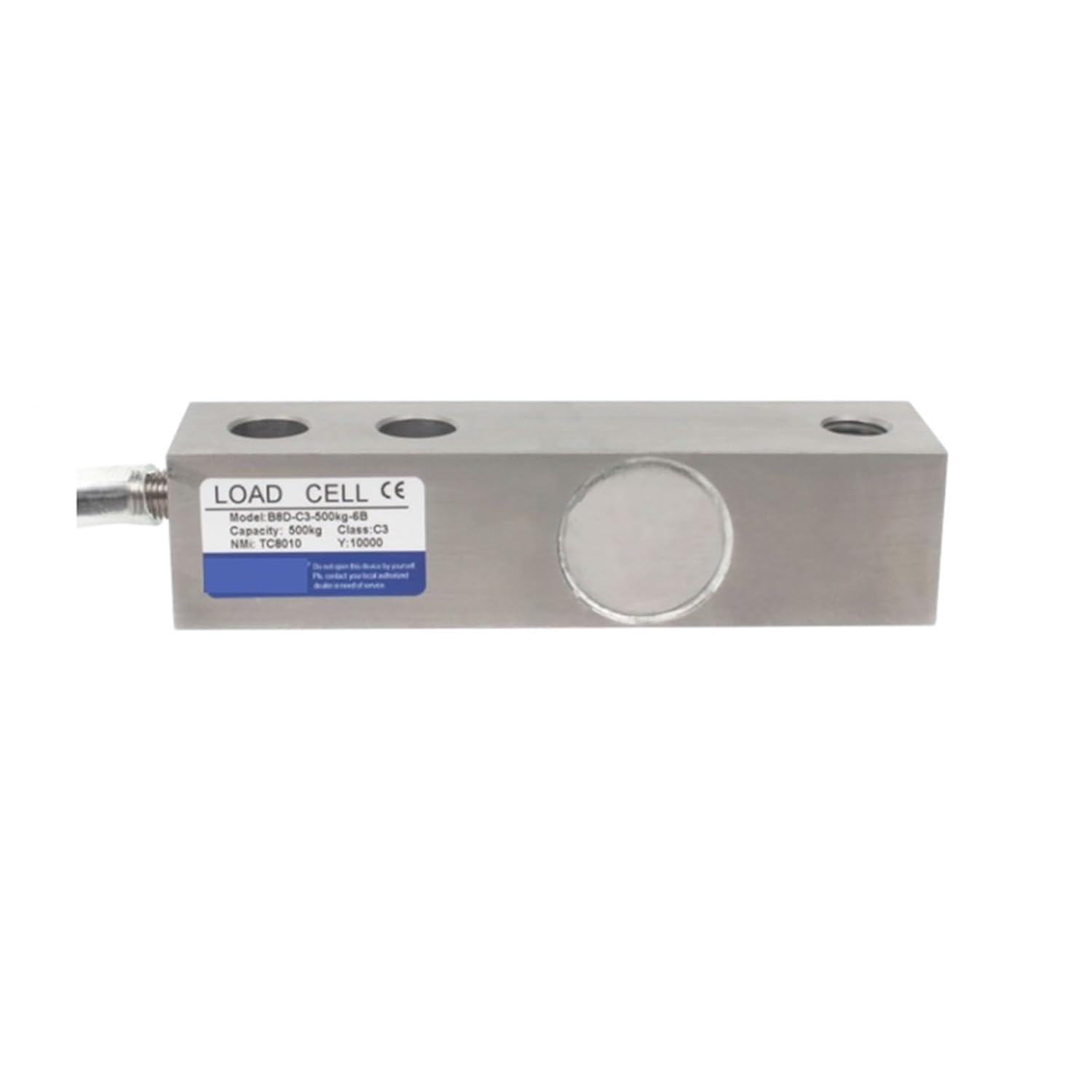

B8D High Precision Load Cell Stainless Steel Weighing Sensor Weigh Bridge Sensor DIY Electronic Measuring Scale Sensors for DIY Electronic(2000KG)
Product details
| Management number | 221500143 | Release Date | 2026/05/03 | List Price | $117.84 | Model Number | 221500143 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product ParamentersTheory : Resistance SensorUsage : Pressure SensorModel Number : B8DMaterial : MetalType : vibration sensorOutput : Analog SensorForce range : 500KG-5000KGproduct name : Load cellaccuracy : C3Maximum calibration divisions : 3000nmaxComprehensive error : ±0.02%F.SCreep : ±0.016%F.S/30minThe Effect of Temperature on Output Sensitivity : ±0.011%F.S/10The influence of temperature on zero point output : ±0.015%F.S/10Output sensitivity : 3.0±0.008(mv/v)Input impedance : 350±5Output impedance : 350±5Insulation Resistance : 5000(50VDC)MZero point output : ±1%F.STemperature compensation range : -10~40permitted useful temperature range : -20~40Recommended excitation voltage : 5~12(DC)vMaximum excitation voltage : 18(DC)vSafe overload range : 150%F.SExtreme overload range : 300%F.SProtection grade : IP67Material : Stainless steel
- Creep : ±0.016%F.S/30min The Effect of Temperature on Output Sensitivity : ±0.011%F.S/10
- The influence of temperature on zero point output : ±0.015%F.S/10 Output sensitivity : 3.0±0.008(mv/v)
- Input impedance : 350±5 Output impedance : 350±5 Insulation Resistance : 5000(50VDC)M
- Zero point output : ±1%F.S Temperature compensation range : -10~40
- permitted useful temperature range : -20~40 Recommended excitation voltage : 5~12(DC)v Maximum excitation voltage : 18(DC)v
- Safe overload range : 150%F.S
| Color | Silver |
|---|---|
| Brand Name | JCKJEDAT |
| Part Number | TFYAJCUFB-SILVER-2000KG |
| Manufacturer | JCKJEDAT |
| Weight Capacity Maximum | 1 Grams |
