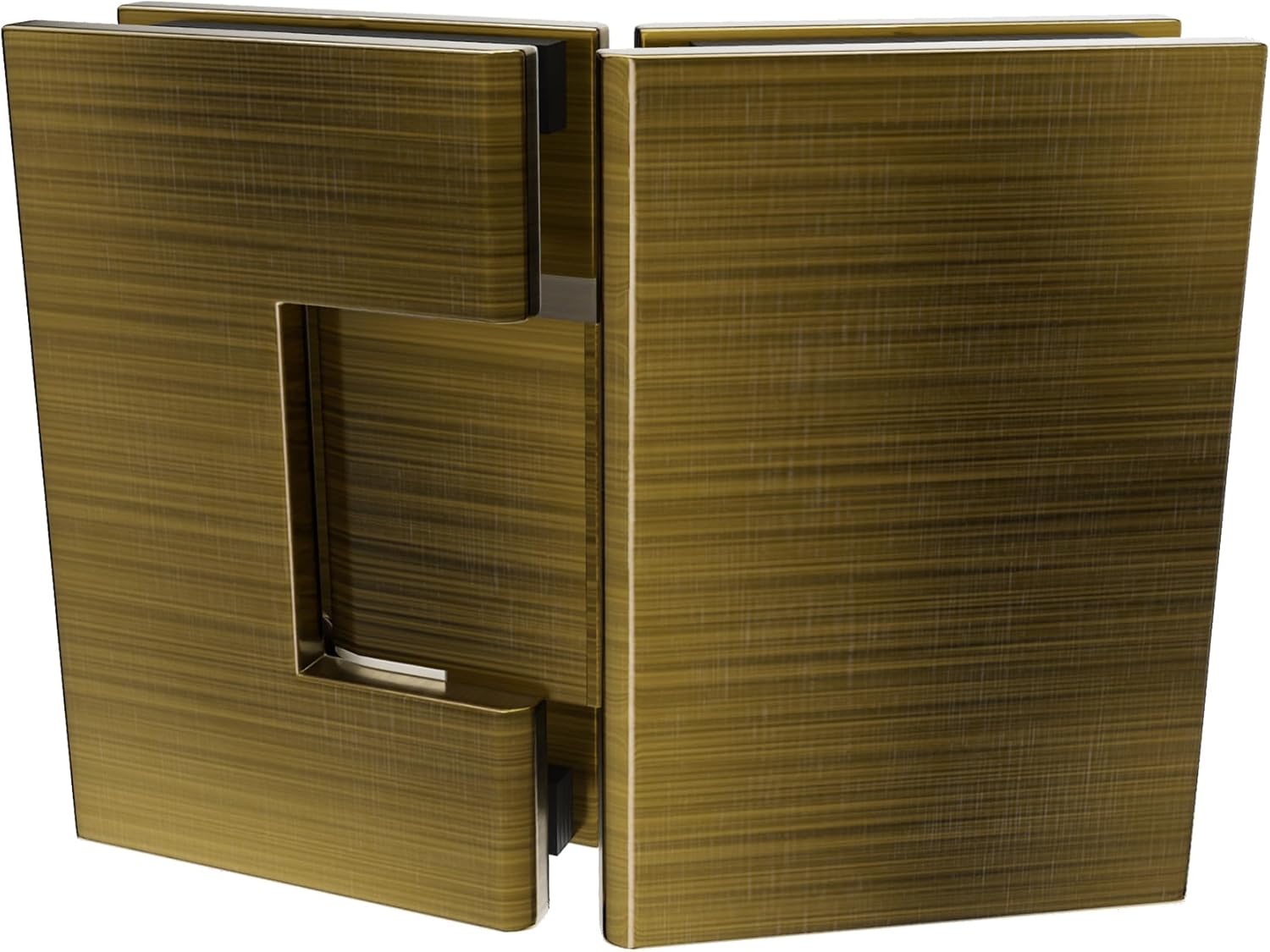

Brixwell Adjustable Glass-to-Glass Door Hinge 135 Degrees, Satin, Solid Forged Brass, 3-9/16" Height, 2-9/16" Fixed Part Width, Fits 3/8" and 1/2" Glass, Self-Closing, Hardware Included

The Brixwell Adjustable Glass To Glass Door Hinge 135 Degrees is designed for frameless shower enclosures and bathroom glass doors. Made from solid forged brass with a Satin finish, this hinge combines a functional design with compatibility for glass-to-glass mounting. It features a square edge profile and requires a cutout in the glass panel for secure installation. The hinge measures 3-9/16" in height, with a fixed part width of 2-9/16" and a hinged part width of 2-3/16". The plate thickness is 3/16", and the fixed mounting plate depth is 2-3/16". It fits 3/8" and 1/2" (10 and 12mm) thick glass, making it suitable for various frameless shower configurations. This adjustable hinge includes stainless steel hex clamping screws, a crosshead screw, and a hex wrench for installation. It features a self-centering function at 0-degree return and allows adjustment up to 30 degrees in or out, giving flexibility during setup. The hinge is rated at 40 lbs per hinge, with two hinges supporting up to 80 lbs and three hinges up to 120 lbs, accommodating glass doors up to 36" wide. The hinge design includes a mouse ear feature for easier adjustment and a self-closing action from 25 degrees, helping doors return smoothly after use. Built with stainless steel pins and springs, it offers consistent performance for frameless shower doors.

• MATERIAL AND FINISH: Made from solid forged brass with Satin finish, this hinge fits frameless shower enclosures and glass doors, pairing with bathroom hardware for functional glass-to-glass installations.
• HINGE DIMENSIONS: Measures 3-9/16" height, 2-9/16" fixed width, 2-3/16" hinged width, 2-3/16" plate depth, and 3/16" plate thickness, supporting accurate alignment in bathroom glass-to-glass shower door setups.
• GLASS COMPATIBILITY: Designed for 3/8" and 1/2" glass thickness, requiring a cutout in the glass panel for mounting, making this hinge suitable for frameless shower doors and bathroom glass partitions.
• ADJUSTABLE FUNCTION: Features a self-centering 0 degree return with adjustment up to 30 degrees in or out, giving flexibility for frameless shower door alignment and supporting balanced positioning in bathroom installations.
• WEIGHT CAPACITY: Each hinge is rated for 40 lbs, with two hinges supporting up to 80 lbs and three hinges up to 120 lbs, accommodating glass shower doors up to 36" wide in frameless bathroom enclosures.
• WEIGHT CAPACITY: Each hinge is rated for 40 lbs, with two hinges supporting up to 80 lbs and three hinges up to 120 lbs, accommodating glass shower doors up to 36" wide in frameless bathroom enclosures.
• HARDWARE INCLUDED: Comes with stainless steel hex clamping screws, crosshead screws, and a hex wrench, providing all necessary parts for secure mounting in glass-to-glass shower door hardware systems.
