Busbar Copper 12V-48V DC/ 300V AC 600A with 8X 3/8"(M10) Terminals Posts Power Distribution Block, Heavy Duty Large Battery Bus Bar for RV Solar System Automotive Boat Marine, Black
$69.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.trendorajewels.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$69.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.trendorajewels.com
Free 30-day returns Details
Product details
| Management number | 209203090 | Release Date | 2026/03/29 | List Price | $28.00 | Model Number | 209203090 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 🔹Premium Construction: Heavy duty module design. Flame-retardant Polycarbonate( PC) Base & cover with thickened 0.748"tin-plated pure electrical copper plates for maximum conductivity. Stainless Steel 316 Studs resist saltwater corrosion, sepcial for marine
- 🔹Large ​Secure Multi-wire Distribution Block: High-current 600Amp PowerBar with eight 3/8" terminal studs and cover
- 🔹Max voltage: 300VAC/ 48VDC
- 🔹Continuous Rating: 545A AC/ 600A DC

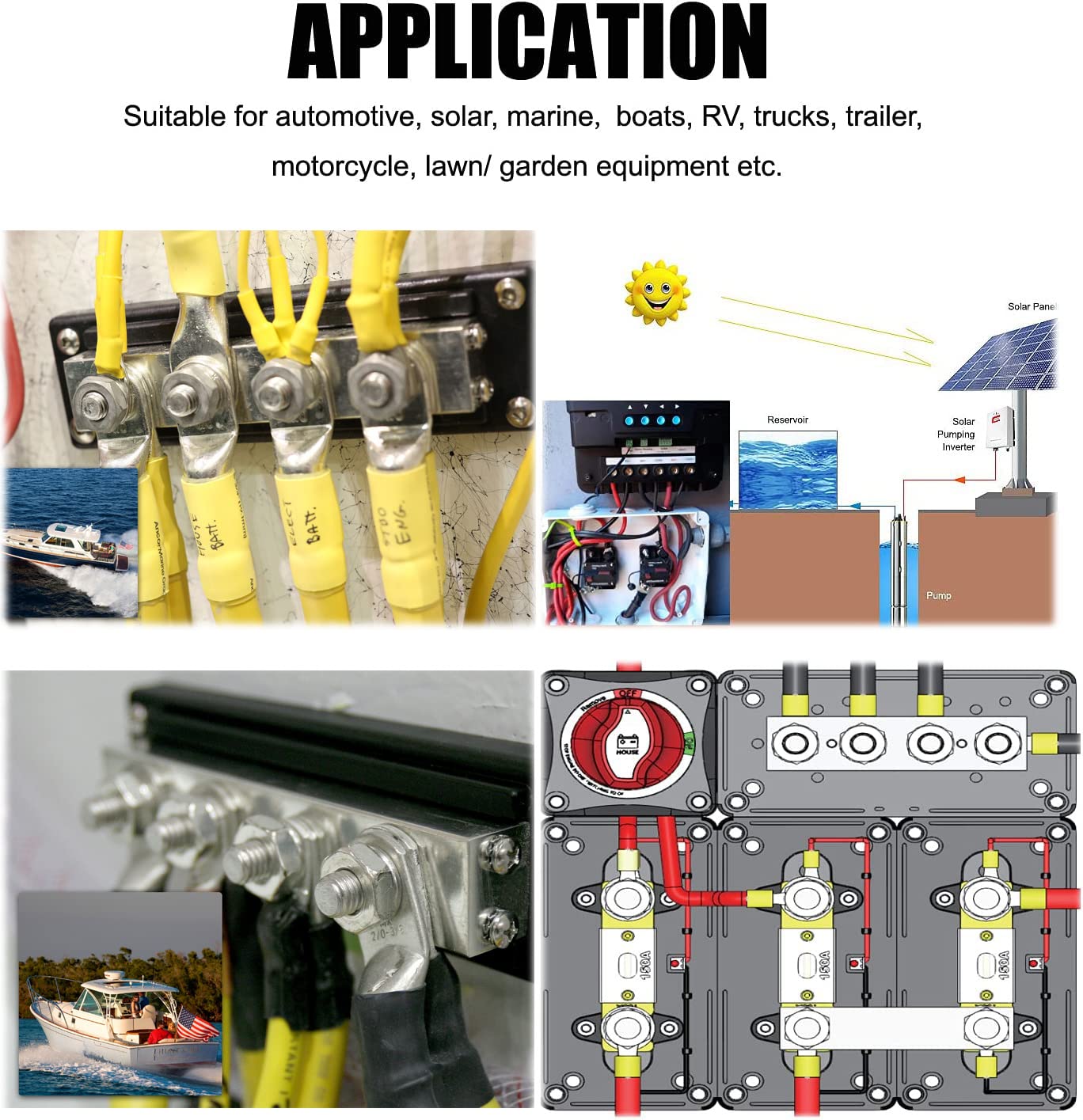

- 🔹Common Bus Bar Distribution Box: it widely fit for automotive, car, stereo setup, RVs, truck, trailer, solar, battery bank, off-grid, boat and marine, home, industry max 300VAC/ 48VDC electrical systems and more
- 🔹Easy to Install: Surface Mount. mounting holes accept 1/4" screws. Bus Bar Dimension: 11.37" x 2" x 2". ( with Cover) approx. 12.4"x 3.04"x 2.15"
- 🔹Safe Note: a, the wire and over current protection is sized based on the load; b, Make sure your 3/8" Lug can work with 600Amps current
- 🔹​​What You Get: 1x 600 Amp bus bar with 8x ​3/8"(m10) studs terminal, 1x cover( black)
- 🔹 The Busbars are Climate Friendly. Safer Chemicals. contain Recycled Materials. Worker well-being. Economical Package
| Color | Black |
|---|---|
| Model | A1149-A-Z |
| Voltage | 48 Volts |
| Brand Name | Gloaso |
| Item Weight | 1430 Grams |
| Part Number | A1149-A-Z |
| Manufacturer | Gloaso |
| Material Type | Base: Flame retardant PC, Busbar: Tin-Plated Copper, Stud: Stainless Steel 316 |
| Mounting Type | Surface Mount |
| Connector Type | Screw |
| Current Rating | 600 Amps |
| Number Of Poles | 8 |
| Centerline Length | 11.37 Inches |
| Specification Met | CE, RoHS |
| Number Of Contacts | 8 |
| Included Components | Heavy duty 600amp Copper Bus Bar with 8 x 3/8" Posts Terminals and cover( black) |
| Number of Positions | 8 |
| Item Dimensions W x H | 11.37"W x 2"H |
