Product details
| Management number | 221625936 | Release Date | 2026/05/03 | List Price | $72.00 | Model Number | 221625936 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

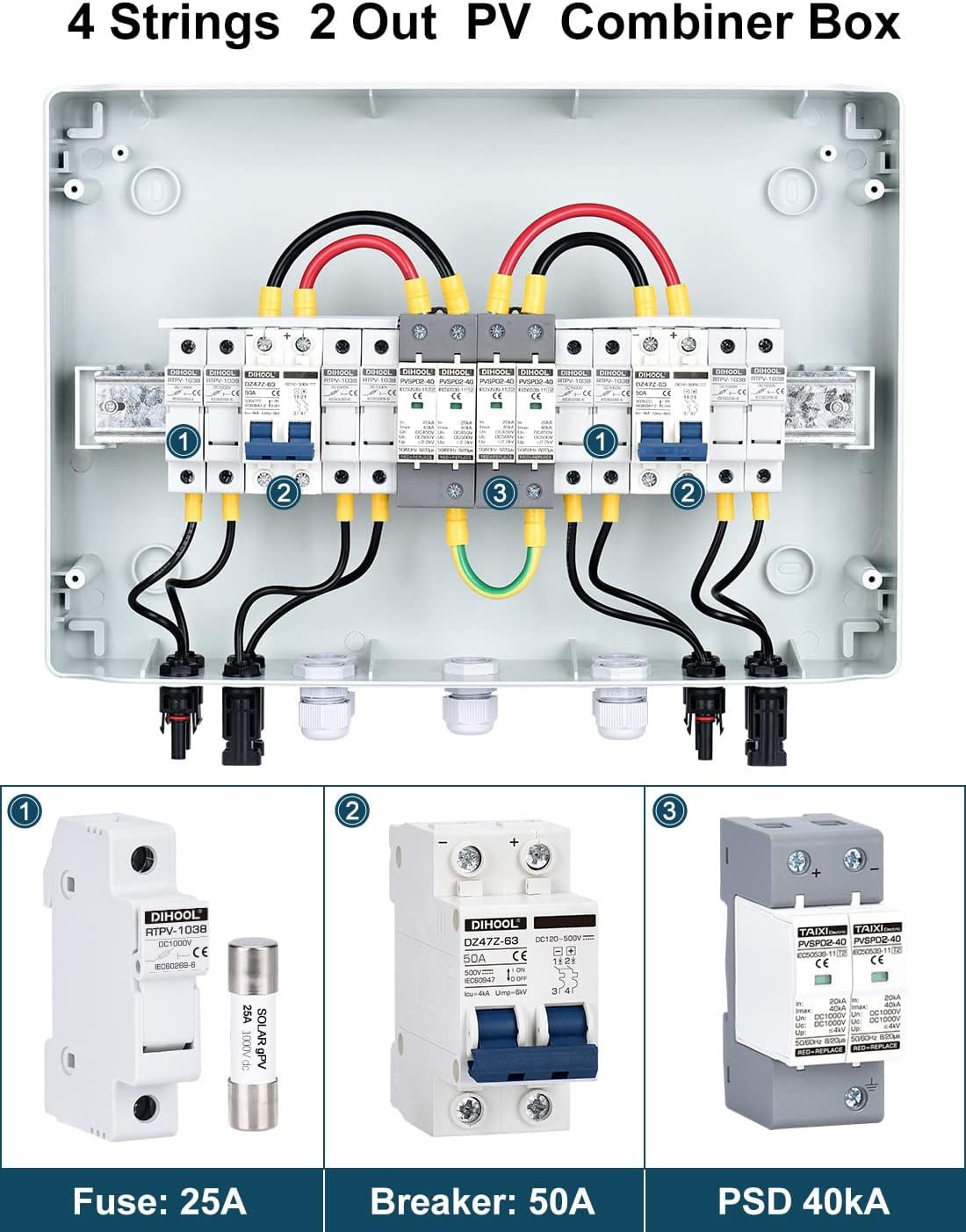

- IP65 Circuit Breaker Box: Made of PC+ABS material, it has high impact resistance, high heat resistance, good dimensional stability, excellent flame retardancy, acid and alkali resistance, solvent resistance, and UV resistance. the transparent cover can check the status of the main switch and lightning protection.
- DC Miniature Circuit Breaker: built-in arc squelching magnet which enables the high arc extinguisher,flame-retardant enclosure, silver contacts, and sufficient pure copper coils to ensure its high quality.
- [T2 Surge Protector]: 20kA-40kA 2P DC500V, with 6mm thick shielded storm chip, removable module design, red indicator light when need to replace components
- This photovoltaic fuse has a rated voltage of 1000VDC, Breaking Capacity: 33kA,operating temperature:-40~+90°C—conforms to IEC (EN) 60269-6 standards,product size:10x38mm/0.4 x1.5inches.
- Solar connectors: made of red copper which has higher conductivity,the solar extension cable with a length of no more than 30cm and two pairs of solar connectors to achieve faster and safer wiring and plug and play

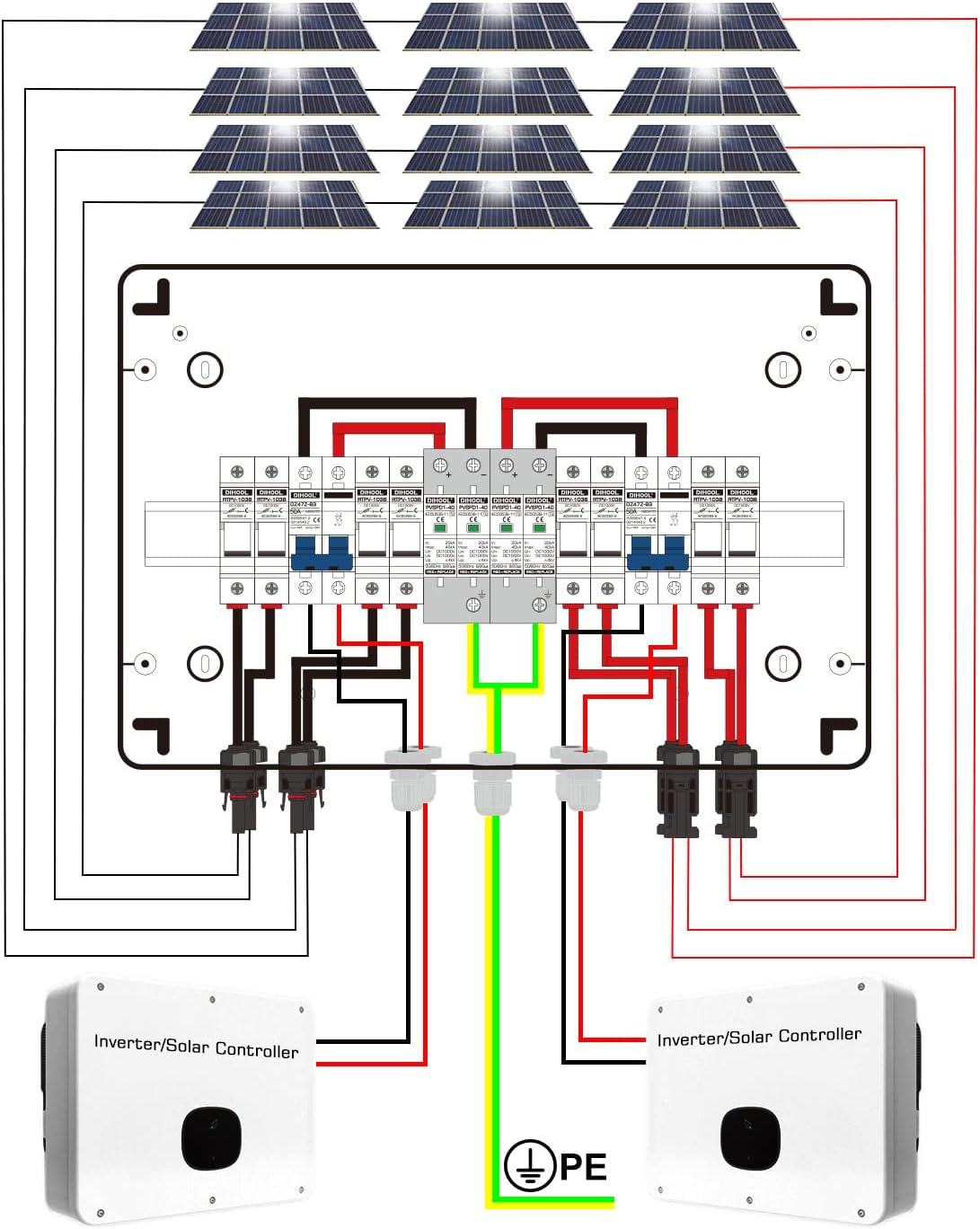

- This solar combiner box can prevent overload , short circuit and lightning or as a shut off switch between photovoltaic modules and inverters is suitable for photovoltaic solar panel grid-connected system and solar off-grid system solar power system, photovoltaic array, RV solar.
- PRE WIRED AND EASY INSTALLATION:the distribution box have already wried. all cable ends has been crimp on with high quality thickness ends to make connection more secure. The electrical box can be handheld or fixed on the wall. You just need to drill holes in the wall and fix them with screws.
| Color | 4 String 2 Out 25 Amp |
|---|---|
| Style | Modern |
| Material | Polycarbonate |
| Brand Name | DIHOOL |
| Finish Type | Unfinished |
| Part Number | ABCDEFS2022013088 |
| Manufacturer | DIHOOL |
| Model Number | PV Combiner Box 25 Amp |
| Item Type Name | PV Combiner Box |
| Installation Type | Wall-Mounted |
| Warranty Description | 18 Months |
