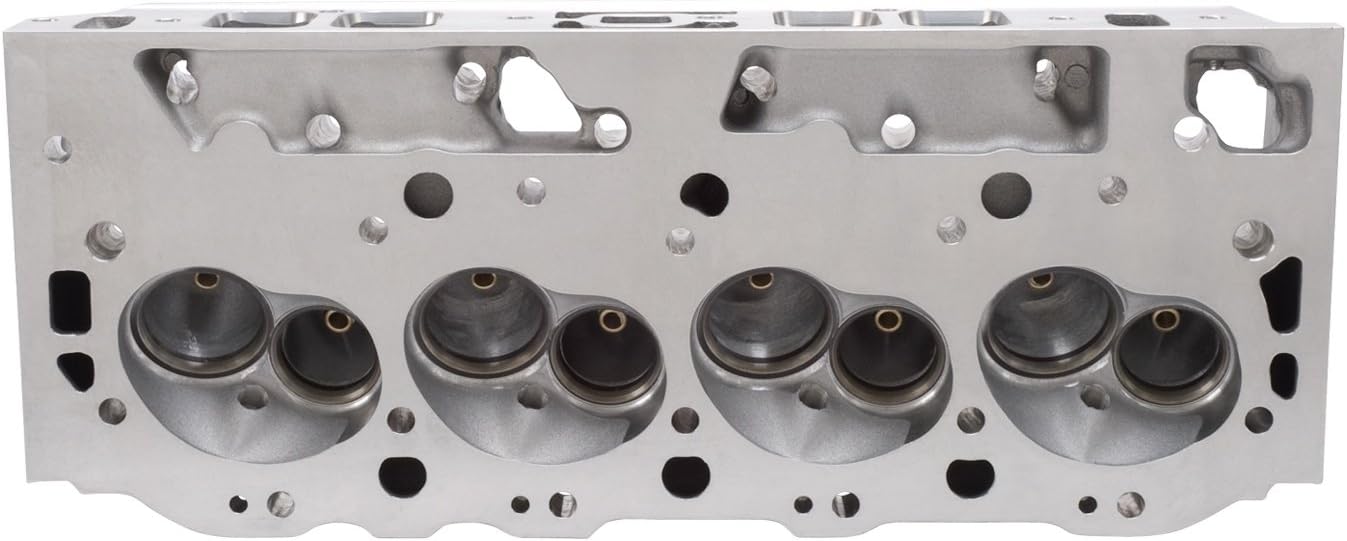

Edelbrock 60549 BBC Performer RPM 454-R Cylinder Head - Bare
Product details
| Management number | 215393551 | Release Date | 2026/04/12 | List Price | $297.40 | Model Number | 215393551 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Cylinder Head Specifications: Combustion chamber volume: 118cc; Intake runner volume: 315cc; Exhaust runner volume: 110cc; Intake valve diameter: 2. 19"; Exhaust valve diameter: 1. 88"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 9/16"; Valve spring diameter: 1. 55"; Valve spring maximum lift: . 700"; Rocker stud: 7/16"; Guide plate: Hardened steel; Pushrod diameter: 3/8"; Valve angle: 26°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Bare heads will have valve guides & seats installed, but will require final sizing & a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. All Performer and Performer RPM Big-Block Chevy heads: Spark plug is closer to center of bore, will interfere with high-dome pistons for open chamber heads. Use pistons designed for our heads. Match with Edelbrock head gasket sets.
- Bare Single For Hydraulic Roller
- 118cc Combustion Chamber Volume
- 315cc Intake/110cc Exhaust Runner Volume
- 2. 19 in. Intake/1. 88 in. Exhaust Valve Diameter
- 0. 562 in. Deck Thickness
| UPC | 085347605491 |
|---|---|
| Brand Name | Edelbrock |
| Item Weight | 11 Pounds |
| Manufacturer | Edelbrock |
| Model Number | 60549 |
| Item Type Name | CYLINDER HEAD |
| Exterior Finish | Satin |
| Number of Ports | 2 |
| Number of Pieces | 1 |
| Manufacturer Warranty Description | 90 Day Manufacturer |
| Global Trade Identification Number | 00085347605491 |
