GPS Antenna, GNSS Antenna, Satellite Antenna, GPS Navigation Antenna, for Driving/Boat Ship Marine, 5m Cable with TNC Connector/Magnetic Base

Type: GPS/GNSS Antenna Frequency Band: 1154Mhz~1300Mhz; 1551Mhz~1615Mhz Nominal Impedance: 50ohm Operating voltage: 3.0~16V DC Operating current: ≤35mA Polarization Type: Right-handed circular polarization Antenna shaft ratio: ≤3db Operating temperature: -40℃~+80℃ Storage temperature: -45℃~+85℃ Horizontal Overlay Angle: 360Degree Technical features 1, The antenna adopts single-layer multi-feed super-wideband design, which makes the phase center elevation difference minimum in the whole working frequency band. 2, The antenna unit gain is high, the gain rolling drop is small, the low Elevation satellite signal reception effect is good, ensures that in some cases where the occlusion is more serious, still can collect the star normally; 3, The low noise amplifier adopts the front filter technology, the mailbox suppresses the out-of-band interference signal, and improves the reliability of the system; 4, The Reactance network suppression technology effectively reduces the influence of multipath signal on the measurement accuracy. 5, Waterproof, anti-ultraviolet hood, for the antenna long-term work in the field to provide a guarantee.

• The GPS antenna is an external full-band GNSS measurement antenna, supporting BDS, GPS, GLONASS and GALILEO System satellite navigation signal reception, to meet the current multi-system compatibility and high-precision measurement needs.
• The GNSS Antenna can be widely used in geodesy, marine surveying, precision agriculture, deformation monitoring, intelligent driving, measurement and mapping, driving test, precision agriculture, operations and other high-precision navigation and positioning occasions.

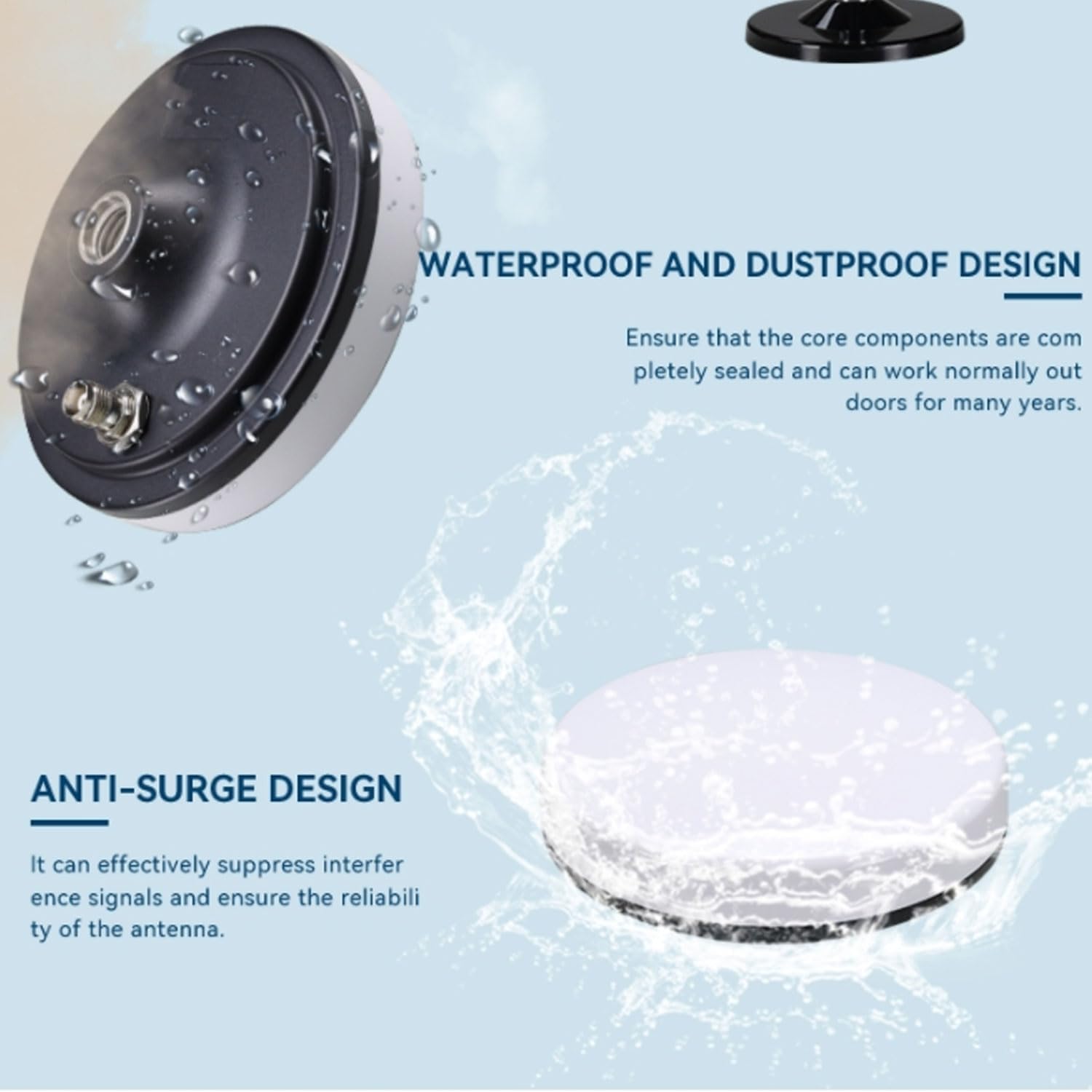

• Low-profile water resistant housing
• GPS for accurate and rapid vessel position and speed updates. Provides heading for accurate direction at any speed and for radar/chart overlay
