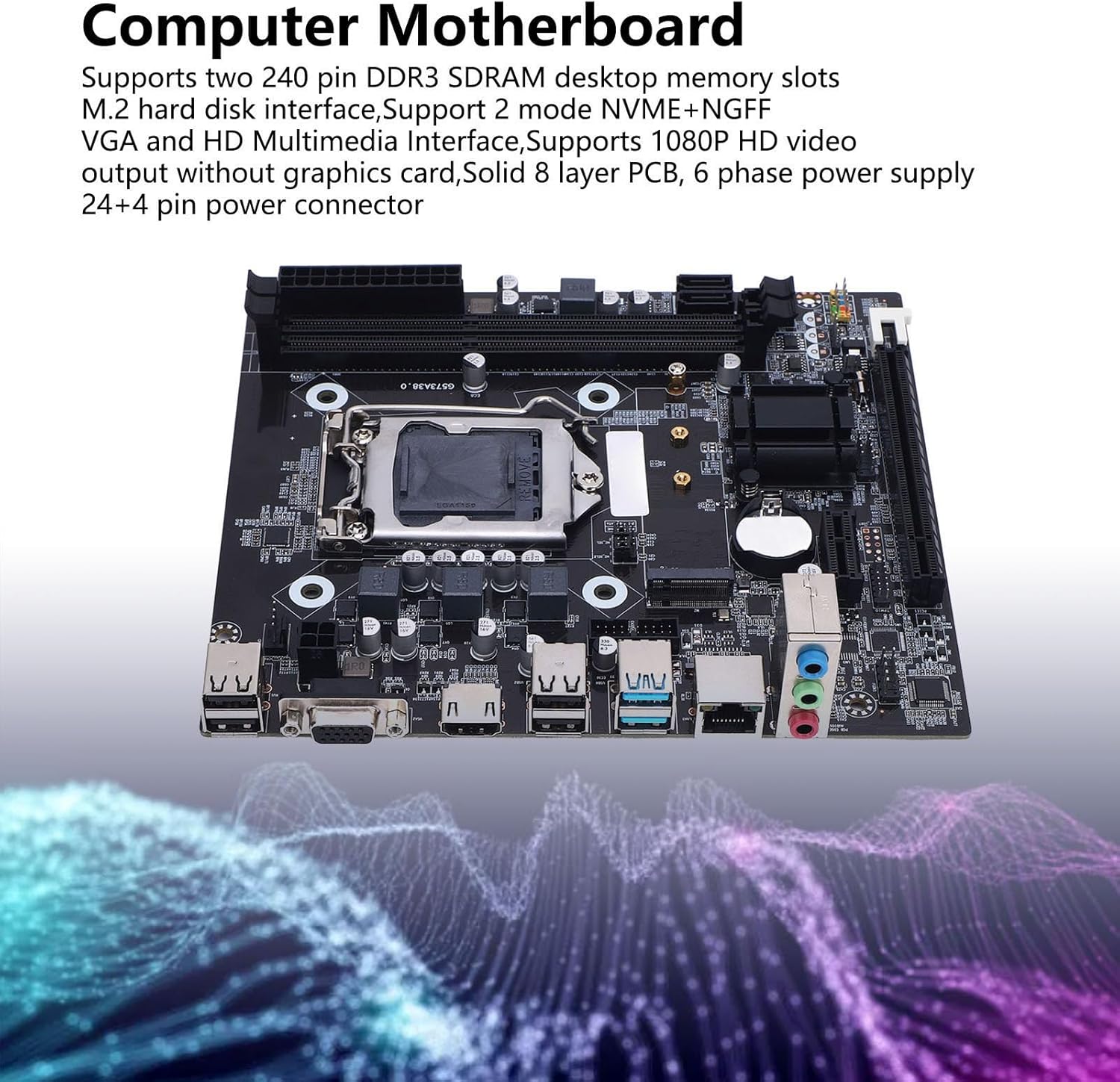

H81 Gaming Motherboard, DDR3, M.2, LGA 1150, M ATX Motherboard, Support Core i3 i5 i7 4th Generation CPU Processors, Integrated LAN, PCI E x16

STORAGE AND EXPANSION SLOTS: The PC motherboard includes 1 Serial ATA 3.0 (6GB/s) port and 2 Serial ATA 2.0 ports for connecting multiple storage devices. Expansion options feature a PCI Express x16 slot, a PCI Express x1 slot, and a slot compatible with M.2 NVMe+NGFF interfaces, ensuring ample upgrade potential for your system. Spec: Item Type: Gaming Motherboard Model: H81 Material: PCB Battery: CR2032 (Built in) Capacity: 240mAh Socket: LGA1150 Socket CPU Support: for Core i3 i5 i7 4th generation, for E3 V3 series, for Celeron G series, and for G series 22nm CPU processors Memory: 2 x 240 pin DDR3 SDRAM slots, maximum memory support 16GB, support 2 channel DDR3 1066 1333 1600 MHz Storage: 2 x Serial ATA 2.0 (3GB/s) ports + 1 x Serial ATA 3.0 (6GB/s) port Integrated LAN: for Realtek Onboard 10 100 Mbps LAN Expansion Slots: 1x PCI Express x16 slot, 1x PCI Express x1 slot Integrated Sound Card: Onboard for Realtek ALC 6 channel HD sound codec, front sound interface, front stereo microphone interface I/O Ports: 4 x USB 2.0, 2 x USB 3.0, 1 x VGA port, 1 x HD Multimedia Interface port, 1 x RJ45 port, 1 x 3 in 1 sound port (Sound input output; Microphone input) Power Ports: 1 x 24 pin ATX power port, 1 x 4 pin ATX 12V power port Size: M-ATX (17 x 19cm / 6.7 x 7.5in) Packing list: 1 x Motherboard

• H81 MOTHERBOARD: This LGA 1150 motherboard is built on the H81 chipset, supporting a range of processors including for Core i3 i5 i7 4th generation, for E3 V3, for Celeron G, and for G series 22nm CPU processors. (Eg. for Core for Core i7-4770, for Core i5-4670, for Core i5-4590, for Core i3-4170, for E3-1285 v3, for G3470, for Celeron G1830, etc.)
• 2 CHANNEL DDR3 MEMORY SLOTS: Gaming motherboard supports two 240 pin DDR3 SDRAM desktop memory slots, unbuffered, supports 2 channel effective frequency DDR3 1066 1333 1600 MHZ, memory support up to 16GB, 2 channel architecture.
• M.2 HARD DRIVE INTERFACE: The upgraded H81 motherboard features a high speed M.2 interface, complete with jumpers, Supports 2 mode NVME+NGFF, freely select high and low, extreme PCIE HDD switching and Serial ATA 3.0 (6GB/s)) channel.
• VGA AND HD MULTIMEDIA INTERFACE: Achieve 1080P video output without the need for a dedicated graphics card. Note that to utilize these ports, your CPU must support integrated graphics, making it an effective choice for media enthusiasts.
• HIGH PERFORMANCE DESIGN: This H81 gaming motherboard boasts an 8 layer PCB construction, a 6 phase power design, and all solid capacitors for professional stability. The 24+4 pin power connector prevents bending, ensuring stable circuit operating and extending motherboard lifespan.
