KUS 3 in 1 Universal Multifunctional Gauge Tachometer Fuel Level 12V Voltmeter 110mm Dimension with Red/Yellow Backlight

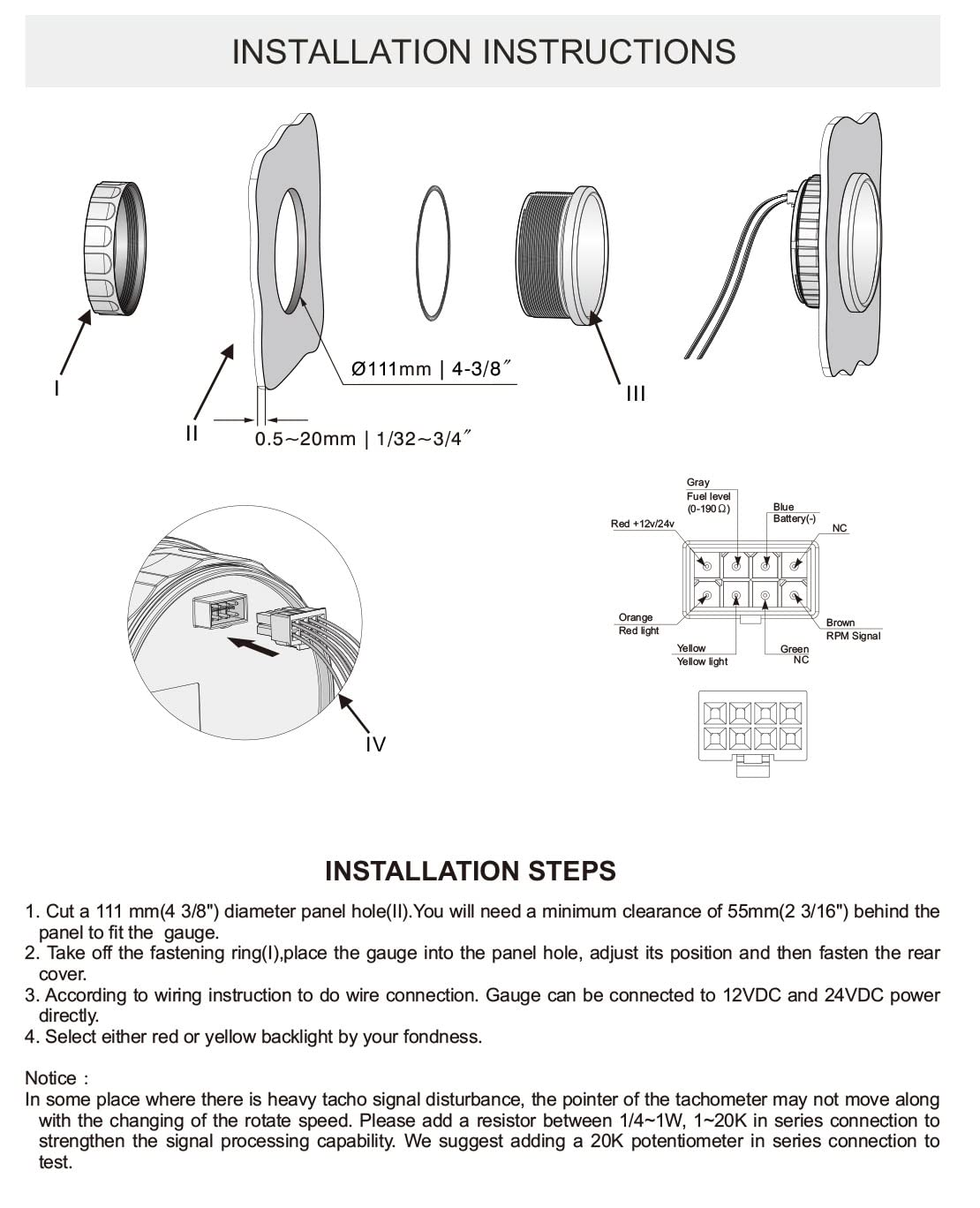

Product Features: - The world's newest 3 in 1 multifunction gauge. - Convenient Installation by muti-plug socket connecting way .- The gauge has the advantages of high precision, quick location confirmation and short start up time. - Most importantly, the gauge is easy to setup, and can be used in all vehicles, boats and off-road vehicles. Specifications: - Installation Dimension: 110mm - Working voltage: 12V - Signal of fuel level meter: 0-180ohm - Signal of voltage meter: 8-16V - Signal of tachometer: 0-6000RPM Speed Ratio:1.0-10.0 - Display Range of fuel level meter: empty-full - Display Range of voltage meter: 8-16V -Display Range of tachometer: 0-6000RPM -Choice between red and yellow backlight -Protection grade is IP67, the whole body is completely waterproof; -Excellent antifogging function; -316 Stainless steel bezel with curved glass; -Convenient Installation by multi-pliug socket connecting way; -Accessories: matched with connectors, Installation Instruction Package Included: -1 x 3 in 1 Multifunctional Gauge -1 x Multi-plug socket -1 x Installation Instruction

• Installation Dimension: 110mm
• Signal of tachometer: 0-6000RPM,Signal of fuel level meter: 0-180ohm,Signal of voltage meter: 8-16V,
• Display Range of fuel level meter: empty-full,Display Range of voltage meter: 8-16V,Display Range of tachometer: 0-6000RPM
• Working Voltage: 12V, Backlight: Red and Yellow available
• 100% waterproof and anti-fogging protection
