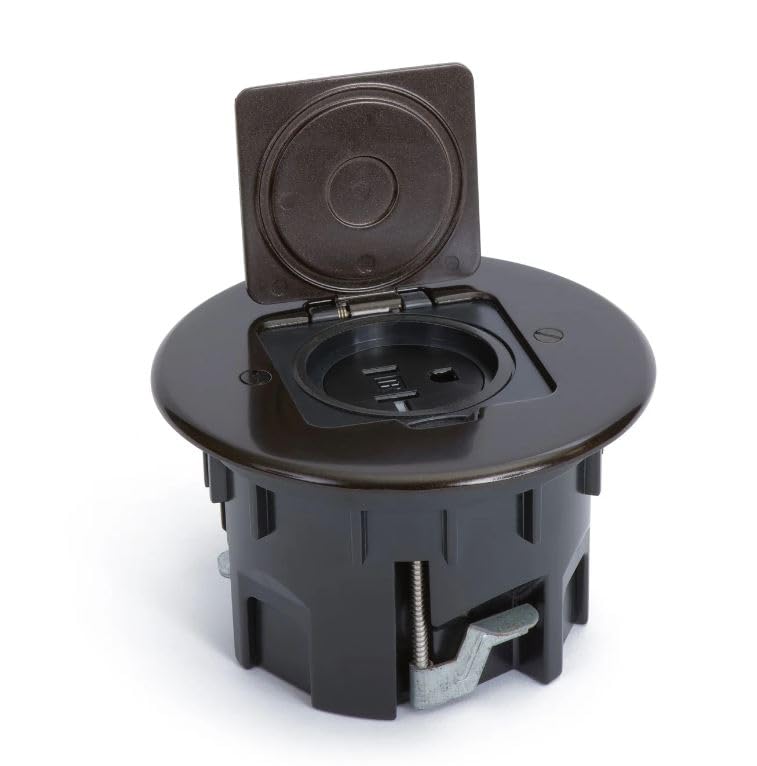

Lew Electric Round Wood Floor Box - Single 20amp Receptacle - Metal Top with Four Colors to Choose from. (Black)
Product details
| Management number | 213642290 | Release Date | 2026/04/12 | List Price | $26.40 | Model Number | 213642290 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Single Receptacle Electrical Floor Box With Flip Lid - Four colors to choose from The Lew Electric RB is a small round floor box with a single outlet plug. The round cover is metal and features a hinged lid opening that stays open for easy access. The receptacle is a tamper-resistant (TR) plug with an o-ring around the outlet to keep liquid out. The outlet is 20 amp rated for high-demand devices, and backwards compatible for 15 amp plugs. The plastic box is easy to install with a 3.5" hole saw in a finished floor, then drop in the box, tighten the two wing-nut screws from the top, wire the outlet, then install the metal top with the supplied two screws. The bottom of the box has slots for NMB cable, and three 1/2" conduit openings. This floor box is perfect for an attractive and small floor box at an affordable price. Specifications: Cover: metal Hinged lid opening Outlets: One 20A TR receptacle Gasket around receptacle Top cover size: 4.306" Box depth: 2.565" Installs in 3.5" hole Maximum floor thickness: 2.5" ETL listed for USA, #4004534 CSA C22.2 #42 for Canada UL listed receptacle Conforms to UL498 Three 1/2" knockouts Slots for NMB cable Box material: Polymer, 15.3 cubic inches For indoor installations only Wing screws secure the box to subfloor Matching cover screws provided Warranty: 1 Year
- Hinged lid opening
- Outlets: One 20A TR receptacle included
- Top cover size: 4.306"
- Box depth: 2.565"
- Installs in 3.5" hole
- ETL listed for USA, #4004534 - CSA C22.2 #42 for Canada
- UL listed receptacle - Conforms to UL498
| UPC | 784149410486 |
|---|---|
| Color | Black |
| Model | RB-XX |
| Amperage | 20 Amps |
| Brand Name | Lew Electric |
| Manufacturer | Lew Electric |
| Material Type | Metal Cover, Plastic |
| Connector Type | Plug-In |
| Power Plug Type | Type B - 3 pin (North American) |
| Specification Met | CSA, ETL, UL |
| Compatible Devices | Clock, Digital Camera, Fan, Laptop, Television |
| Included Components | Metal Cover, plastic back box, 20amp receptacle and screws |
| Total Power Outlets | 1 |
| Item Dimensions L x W | 4.31"L x 4.31"W |
