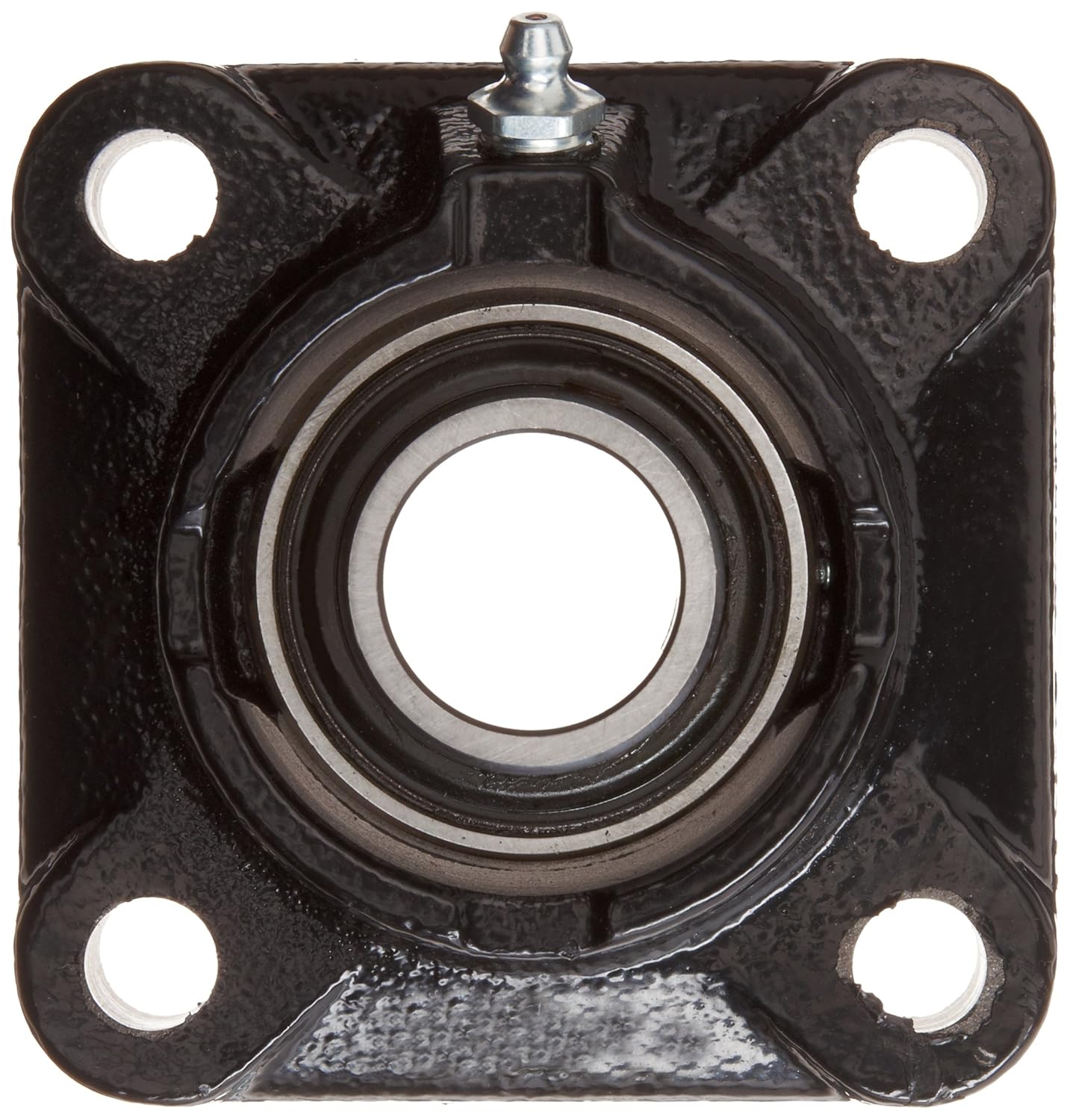

Link-Belt F3S223E Flange Unit, 4 Bolt Holes, Intermediate-Duty, Relubricatable, Non-Expansion, Cast Iron, Spring Locking Collar, Inch, 1-7/16" Bore Diameter

This Link-Belt F3-S200E series intermediate-duty ball bearing flange unit has a cast iron housing with four bolt holes, molded lip seal, and spring-locking collar. This non-expansion type bearing unit is designed for mounting onto bearing surfaces perpendicular to the shaft axis. This ready-to-mount flange unit has a one-piece housing made of cast iron for rigidity and vibration damping. It has a powder coating for corrosion resistance, a grease fitting on the outer surface for reapplying lubricant, and a machined mounting surface for increased stability. The double-sealed, deep-groove ball bearing insert in the housing is made of chromium steel and is rated "intermediate duty" for applications with moderate radial loads and light to moderate thrust or combination loads. It has an extended inner ring for increased shaft support, and a convex sphered outer surface to compensate for misalignments. Seals on both sides of the bearing consisting of a thick land-riding molded lip and external trash guard retain lubricant applied at manufacture and help protect against contaminants. The bearing locks onto the shaft with a spring-locking collar and two setscrews for a positive lock on the shaft. This lock type minimizes ring distortion and vibration and is suitable for low to moderate speed applications where the shaft rotates in a single or reversing direction. Flanged bearing units are suitable for use in industrial and commercial applications including conveyors, fans and blowers, construction machinery, and processing equipment, among many others.Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.Rexnord manufactures power transmission components under brands such as Link-Belt, Thomas, and Stearns, and water management products under brands such as VAG and Zurn. The company is headquartered in Milwaukee, WI.

• Cast iron flanged housing for vibration damping and structural rigidity
• Intermediate-duty, double-sealed ball bearing insert for applications with moderate radial loads and light to moderate thrust or combined loads
• Molded lip seals on both sides of the bearing keep lubricant in and contaminants out
• Spring-locking collar for securing the bearing onto the shaft
• Grease fitting on the housing for reapplying lubricant
