MeanWell NDR-120-24 120 W 24 V 5 A DIN Rail Power Supply DIN-Rail
Product details
| Management number | 212190734 | Release Date | 2026/04/06 | List Price | $12.24 | Model Number | 212190734 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
✔Can be mounted directly on the DIN rail ✔Universal input ✔Closed design, touch-protected screw connections ✔Overload protection by current limitation, auto recovery ✔Protected against short circuit, overload, overvoltage ✔LED display for DC OK power supply type: DIN rail power supply stabilization: constant voltage topology: AC/DC converter input voltage: 115V / 230V (universal) output voltage: 24V output current. : 5A Power : 5A 20 W input voltage (min...max): 90...264VAC output voltage (minmax): 24...28VDC efficiency: 88% length: 125.5 mm width: 40 mm height: 113.5 mm connection input: screw terminals connection output: screw terminals

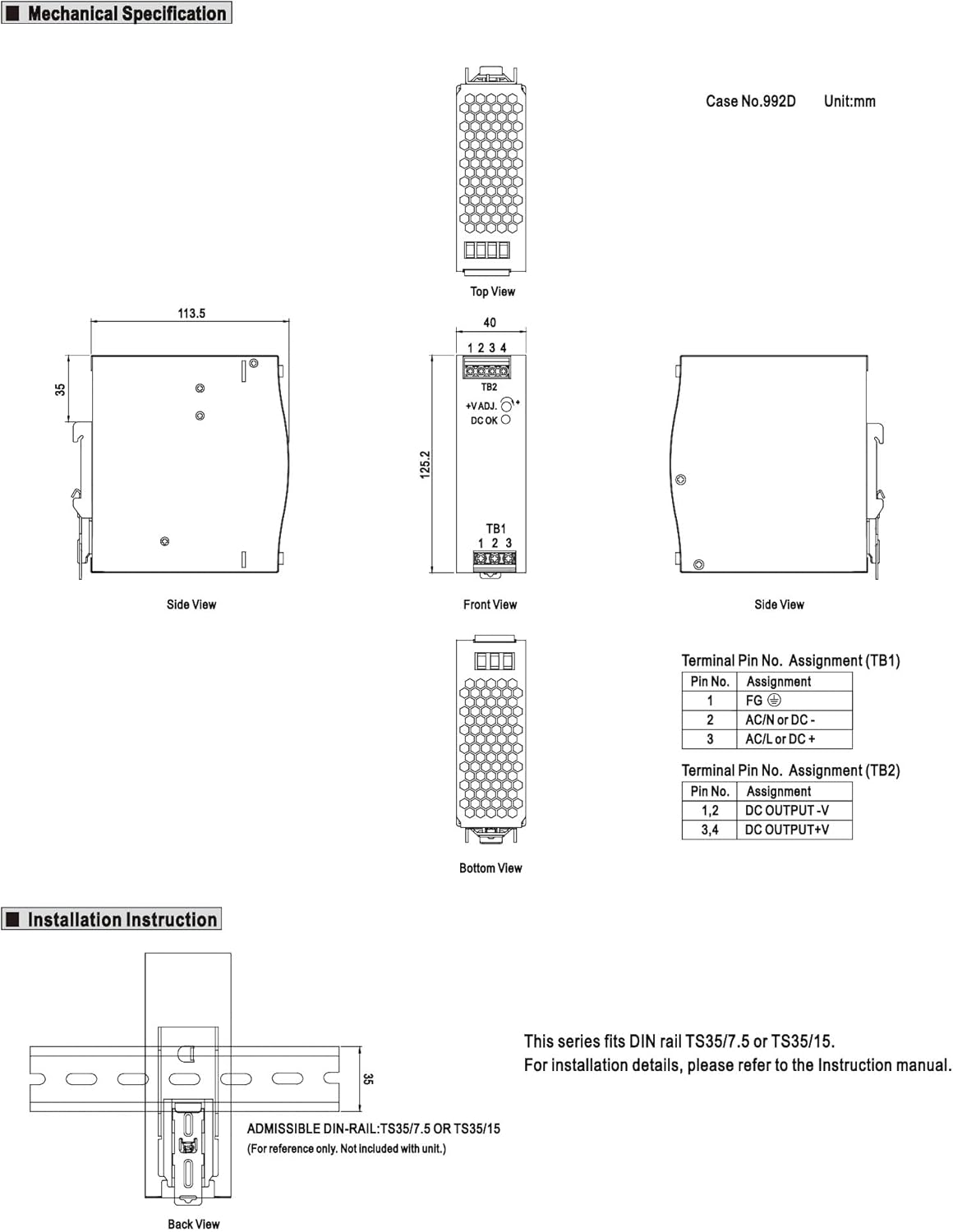

- Length: 125.5 mm, width: 40 mm, height: 113.5 mm
- Package dimensions: 6.35 L x 14.99 H x 14.48 W (Zm)
| Brand | MEAN WELL |
|---|---|
| Wattage | 120 watts |
| Model Name | NDR-120-24 |
| Form Factor | DIN rail |
| Item Weight | 560 Grams |
| Manufacturer | MeanWell |
| Model Number | NDR-120-24_SML |
| BuiltIn Media | NDR-120-24 |
| Cooling Method | Air, NO |
| Current Rating | 5 Amps |
| Number of Fans | 1 |
| Output Wattage | 120 Watts |
| Item Dimensions | 1.57 x 4.47 x 4.93 inches |
| Mfr Part Number | NDR-120-24_SML |
| Compatible Devices | Industrial Control Devices, Sensors, PLCs |
| Power Supply Design | External |
| Maximum Input Voltage | 24 Volts |
| Minimum Input Voltage | 24 Volts |
| System Bus Connector Type | DIN |
| Connector Type Used on Cable | DIN |
