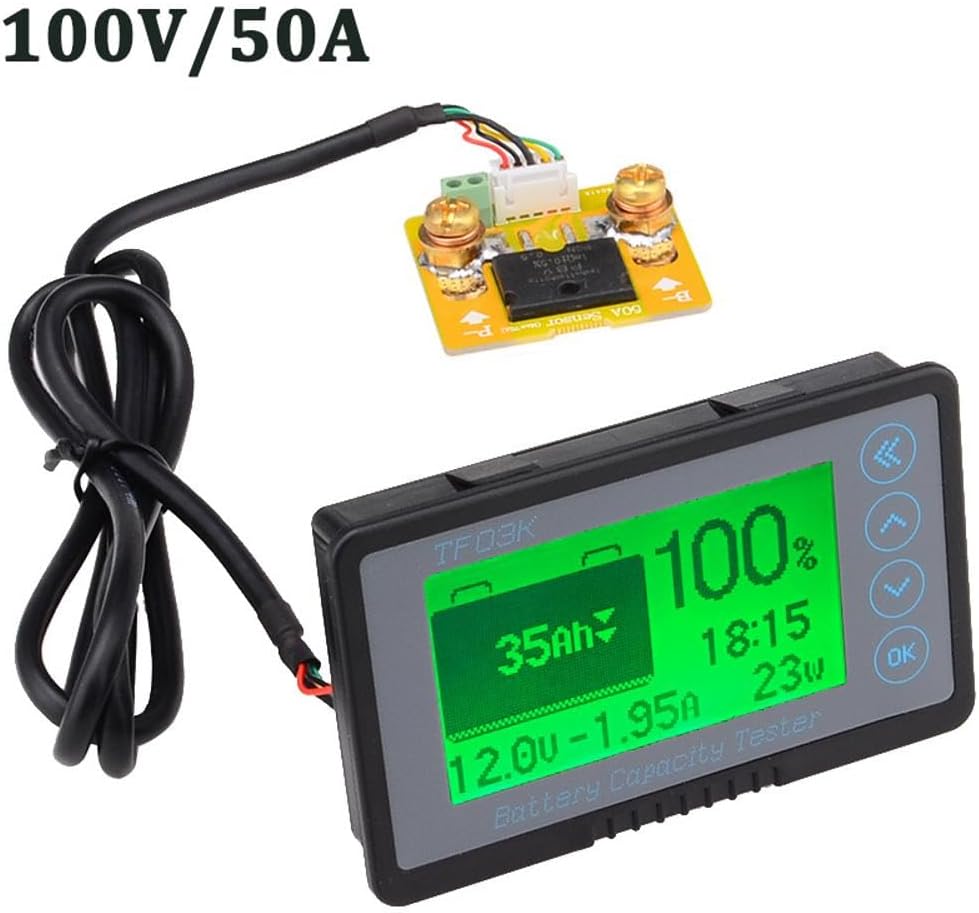

Multifunction Battery Monitor, 50A / 100A / 350A / 500A Digital Battery Capacity Tester, 100V Ah or mAh Battery Indicator 1Pcs

Display:1.The remaining battery capacity (Ah or mAh)2.The percentage of capacity and totem pole display3.The battery voltage value4.The battery current value5.The output power value6. The charging and discharging time remaining displaySpecification:Type: Battery capacity testerModel: TF03KVoltage:100VCurrent: 50A/100A/350A/500ADisplay Window Size: 65x37mmSampler Size: 122x60x22mmWorking Power consumption: 12.0mA (Max: 20.0mA)Standby power consumption: 5.0mA (Max: 8.0mA)Operating voltage range: DC12V (Max: DC50V)Voltage acquisition accuracy: +/- 1.0%Current acquisition accuracy: +/- 1.0%Working temperature range:0~50CBacklit lighting Current: 80mA (Max: 100mA)Off the backlight lamp current: 50mA (Max: 60mA)Battery capacity setpoint: 0.1-999AhPackage includes:1 x Battery Capacity Tester

• 1. The actual remaining battery capacity display, high precision capacity indicator.Low power consumption
• 2. Power down memory capacity function.The backlight automatically turns on.
• 3. TF03K lithium iron phosphate batteries, lead-acid, nickel-hydrogen rechargeable batteries Universal precision current collection type.
• 4. Total size (including mounting panel): 86x54x22mm.PCB Dimensions (with LCD screen): 82x50x18mm.
• 5. You can readily understand the use of a detailed status of the battery, the specific operating voltage range, low power consumption, indicating high accuracy.
