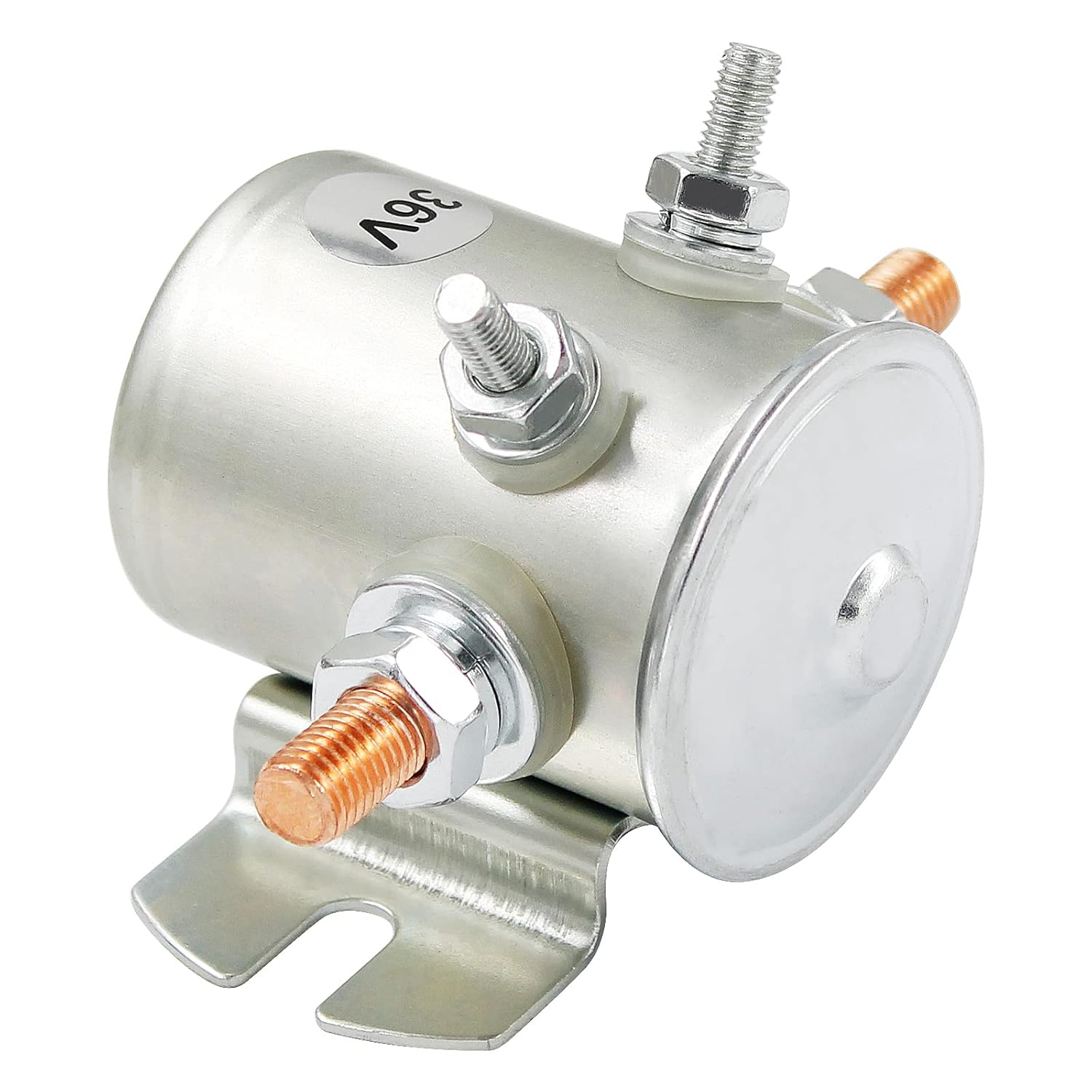

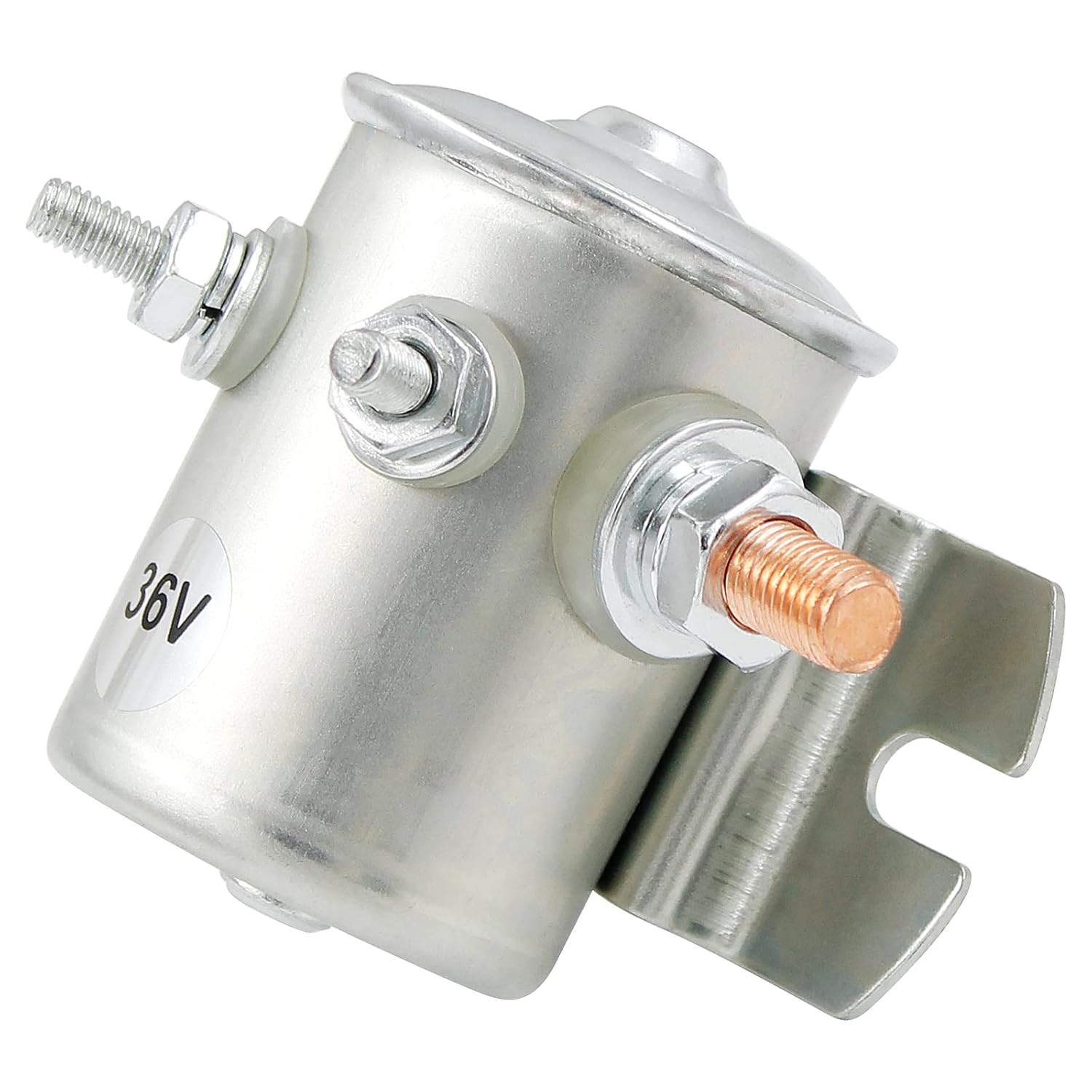

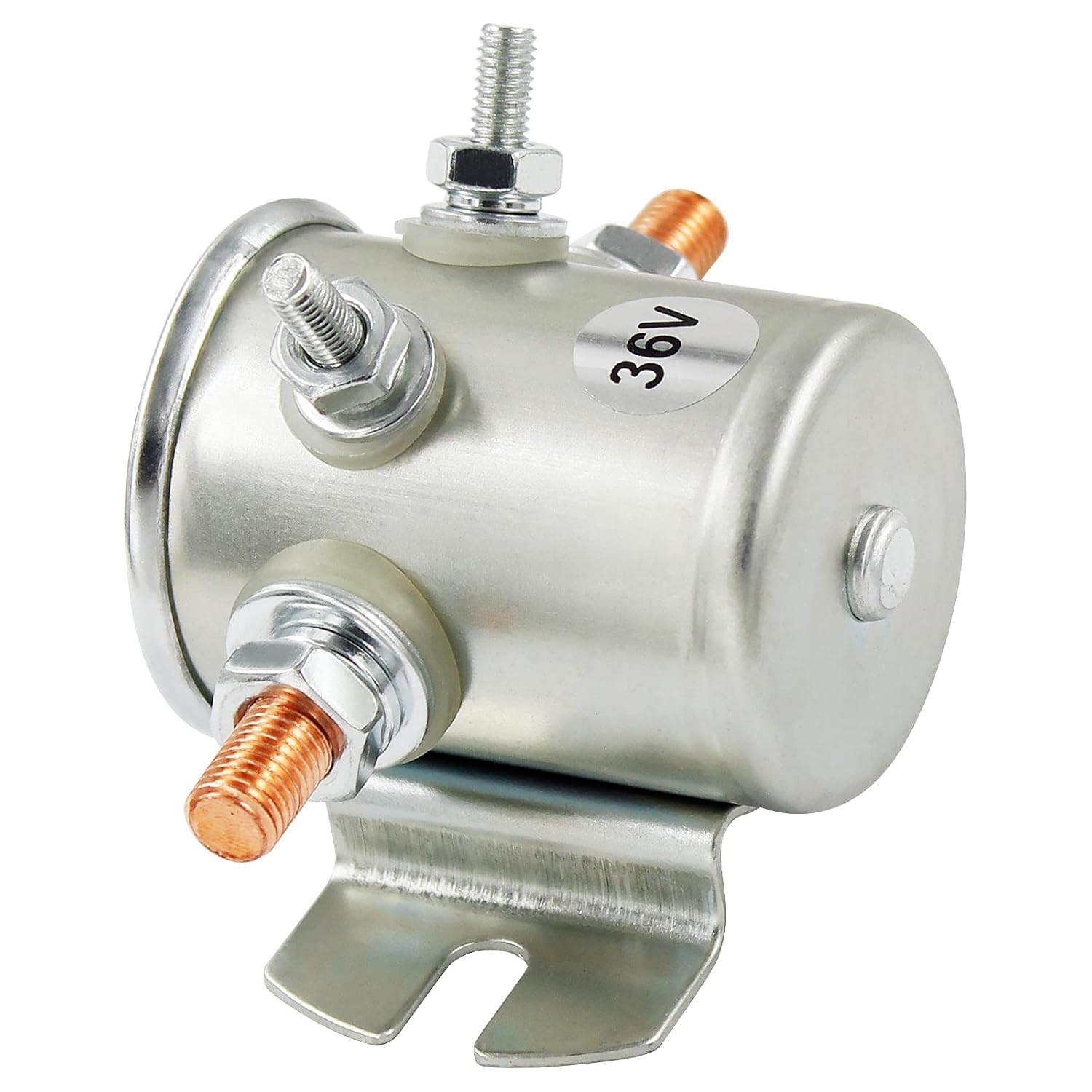

<✿Brand:Road Passion✿Product:36 Volt200 AMPUnder 80Amp4 terminal Heavy-duty SolenoidContinuous Duty Solenoid Relay✿Weight:355g✿Replaces:Prestolite 15-242, 15-243, 15-334, SAS-4301, SAS-4302, SAS-4303, SAS-5303ARelay 15-242, 15-243, SAS4302, 24080, 24080-BX, 70-904, 70-120224United Technologies 50-51184,3016, 11761-G1, 27855-G01, 27855-G02, 31680-G1 KARRIOR 704-00,LEGEND 645933,MELEX 300668,OTIS A-11004PARGO 3016,PARGO 8427All 1986-current E-Z-GO 36 Volt Electric VehiclesE-Z-GO Gas Marathon models with 2 or 4-Cycle EnginesCompatible with Yamaha's Electric G2 Model✿Product suitable for:Ezgo TXT Series ,1980-2010 Electric Golf Cart✿Dimensions:5/16 -24 Studs Standard & LongHoles 5/16 x 19/32 2-13/64 on Center🏍 Attention:The item fits only the specific model listed. Check the item description to make sure the part fits your model.
| Brand Name | Road Passion |
|---|---|
| Part Number | 06-52-02 |
| Coil Voltage | 36 Volts (DC) |
| Contact Type | Normally Open |
| Manufacturer | Road Passion |
| Mounting Type | Screw Mount |
| Connector Type | Screw |
| Current Rating | 200 Amps |
| Operation Mode | Automatic |
| Coil Resistance | 18 Ohms |
| Contact Material | Copper |
| Specification Met | OEM |
| Contact Current Rating | 200 Amps |
| Minimum Switching Voltage | 36 Volts |
