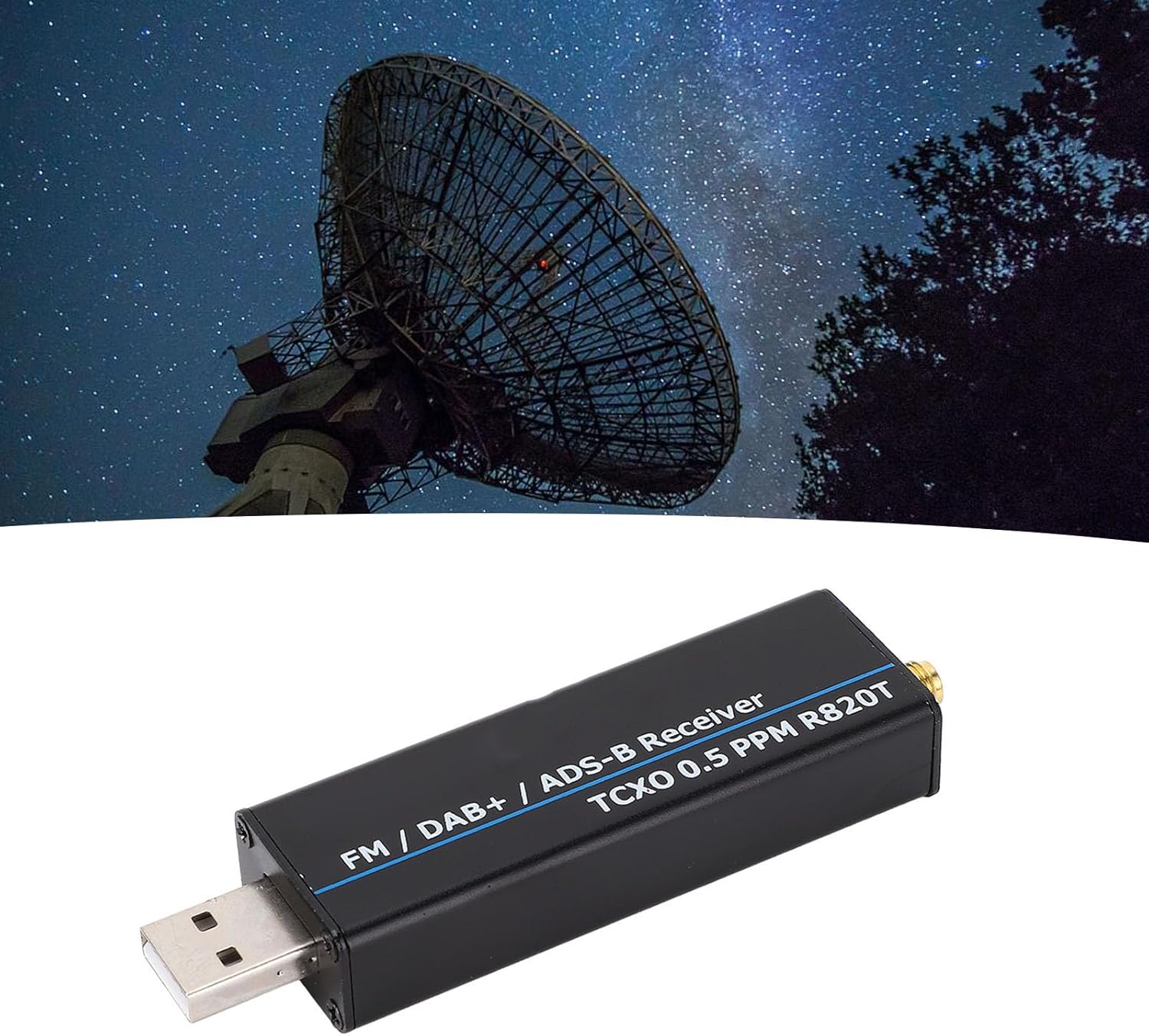

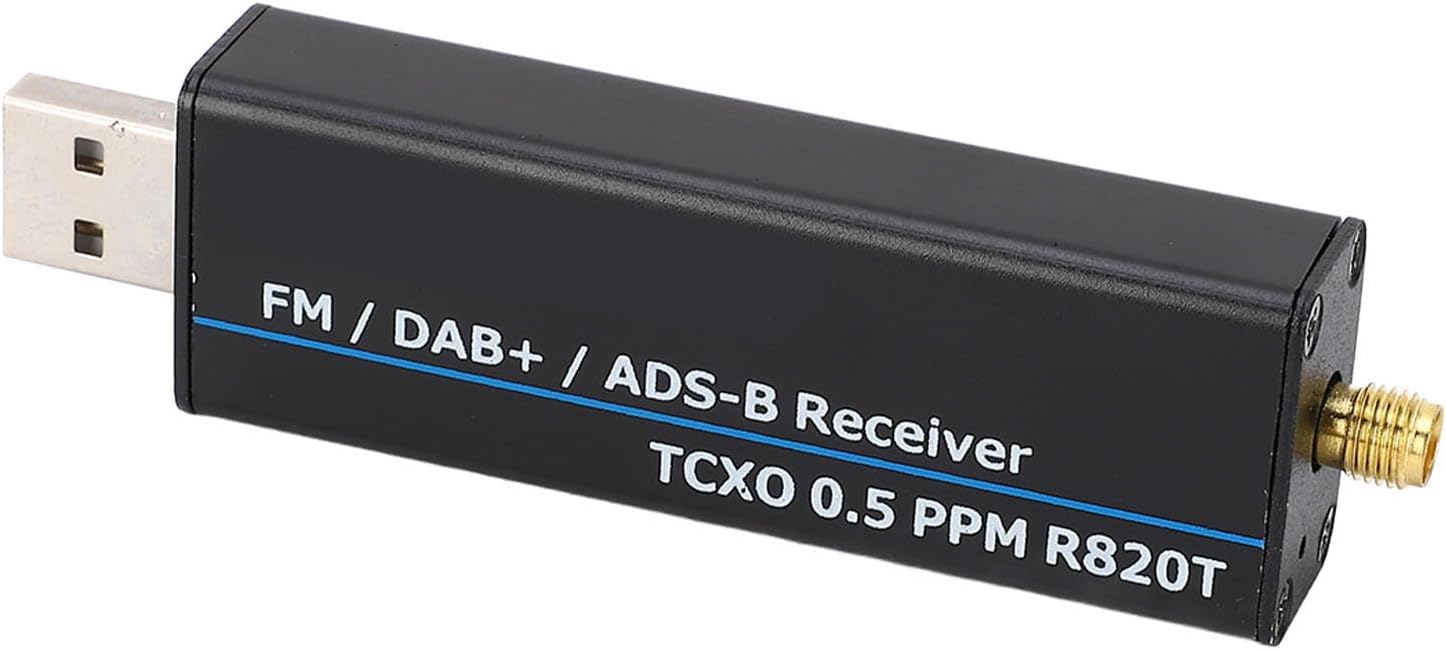

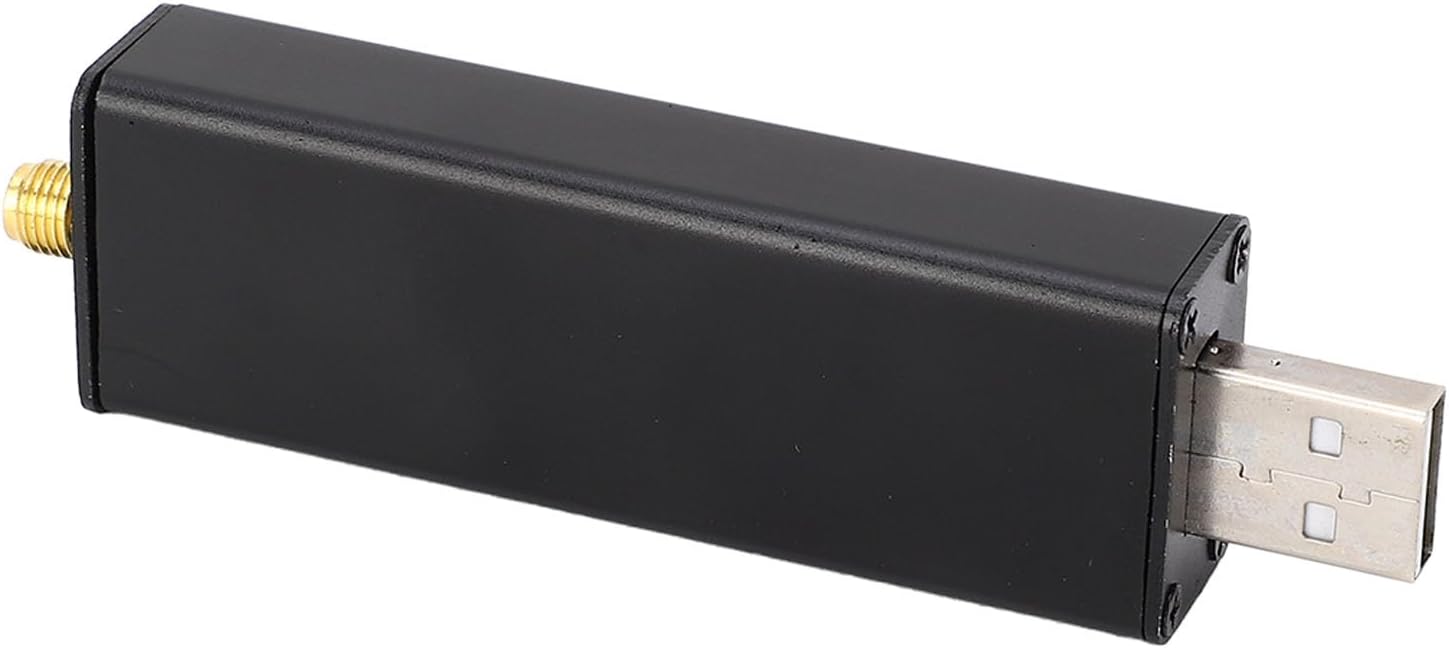

RTL SDR Receiver USB 3.0 100kHz 1766MHz Wideband Radio Scanner Software Defined Radio for Aviation AIS ADS B Compatible with SDR HDSDR Full Band RTL2832U R820T2 0.5 PPM TCXO

Item Type: RTL SDR ReceiverMaterial: Aluminum Alloy, PCBFeatures:1. RTL2832U+R820T2 chipset2. 100KHz to 1766MHz operating frequency3. Covers all amateur bands4. 0.5 PPM temperature compensated oscillator (TCXO)5. Covers 24-1766MHz VHF and UHF bands6. Receiver Modes: AM, NFM, FM, DSB, USB, LSB, and CW7. Direct sampling of and shortwave Q branch8. 8 bit ADC providing approximately 50dB dynamic range9. 50 ohm input impedance10. Independent enna inputs for shortwave and VHF11. USB computer connection (mini USB) powered by general USB, directly sampling RTL SDR technical specificationsPackage List：1 x RTL SDR Receiver1 x Cable2 x enna

• 1.Broad Frequency Coverage Demodulation Modes：This RTL SDR Receiver covers an extensive frequency range from 100KHz to 1766MHz. It supports multiple demodulation types including AM, FM (NFM, WFM), CW, DSB, LSB, and USB. Newly added features like CTCSS, DCS, frequency scanning, and auto - scanning enhance its functionality, making it suitable for tuning into medium wave, shortwave, FM, and aviation bands.
• 2.Advanced RTL2832U And R820T2 Chipset：Featuring the RTL2832U and R820T2 chipset, this receiver offers higher sensitivity compared to the R820T. It shows better performance around 1.5 GHz and is fully software - compatible with the older R820T. With a working frequency range of 100KHz to 1766MHz, it encompasses all HF amateur bands, ensuring excellent signal reception.
• 3.Precise Tuning With 0.5 PPM TCXO：Equipped with a 0.5 PPM TCXO, it enables precise tuning and has extremely low temperature drift. The receiver can cover all HF amateur bands, as well as VHF and UHF frequencies from 24MHz to 1766MHz. It supports a sampling rate of up to 3.2M (with ~2.8MHz stability), and its reception modes include AM, NFM, FM, DSB, USB, LSB, and CW.
• 4.Direct Sampling Capability：It supports direct sampling of the high - frequency shortwave Q - branch (depending on the SDR software used). With an 8 - bit ADC providing approximately 50dB of dynamic range, a 50 - ohm input impedance, and separate shortwave and VHF enna inputs, it offers reliable and efficient signal processing.
• 5.Convenient USB Connection：Powered via Mini USB, it supports reception in low, medium, and high - frequency bands (0 to 30MHz). For high - frequency band reception, the enna must be connected to the input port. To achieve the best performance for high - frequency signals, it is recommended to use compatible ennas such as long - wire ennas, random - wire ennas, and dipole ennas.
