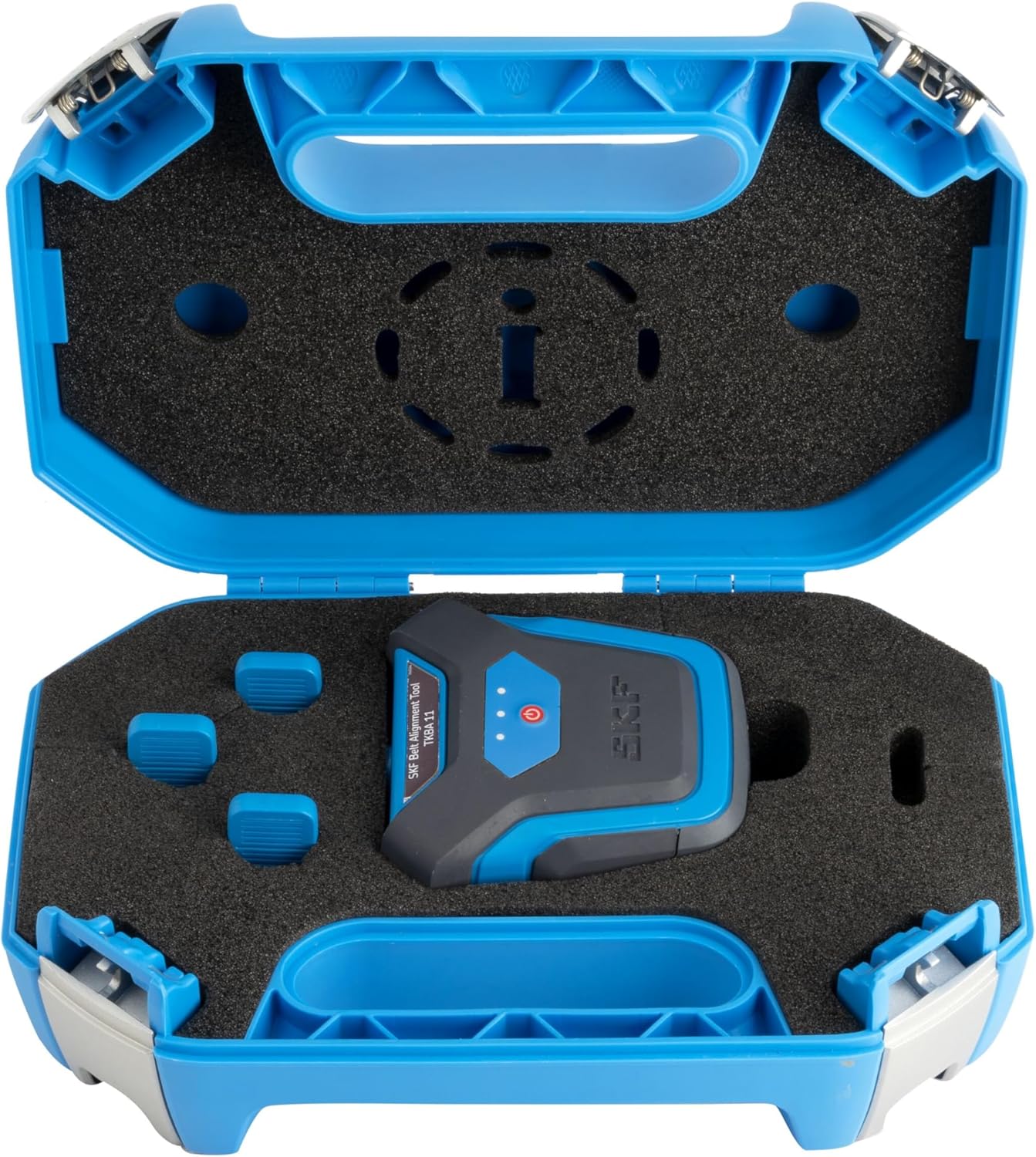

SKF TKBA 11 Precision Belt Alignment Tool (TKBA 10 Replacement)

Belt alignment tool TKBA 11 Precision tool allowing pulley and chain drive alignment The tool has two components; a laser-emitting unit and three passive targets. Each is attached quickly and easily – using a powerful magnet – to the inside or outside face of a belt pulley or chain sprocket. The TKBA 11 can be applied to most machines that use V belts, banded belts and ribbed belts – as well as those with chain sprockets. A laser line is projected from the emitting unit to the passive targets - which are mounted on the opposite pulley. The tool then corrects for vertical angle, horizontal angle and parallel misalignment – including combinations of all three. One laser emitter with three passive targets Uses a red laser diode and can be used for distances up to 3 m (10 ft) Fast, easy attachment Simplified alignment process Simultaneous adjustment of tension and alignment Applicable to most machines using V belts, banded belts, ribbed belts – as well as chain sprockets

• Uses a red laser diode and can be used for distances up to 3 m (10 ft)
• Fast, easy attachment
• Simultaneous adjustment of tension and alignment
• Applicable to most machines using V belts, banded belts, ribbed belts – as well as chain sprockets
• One laser emitter with three passive targets
