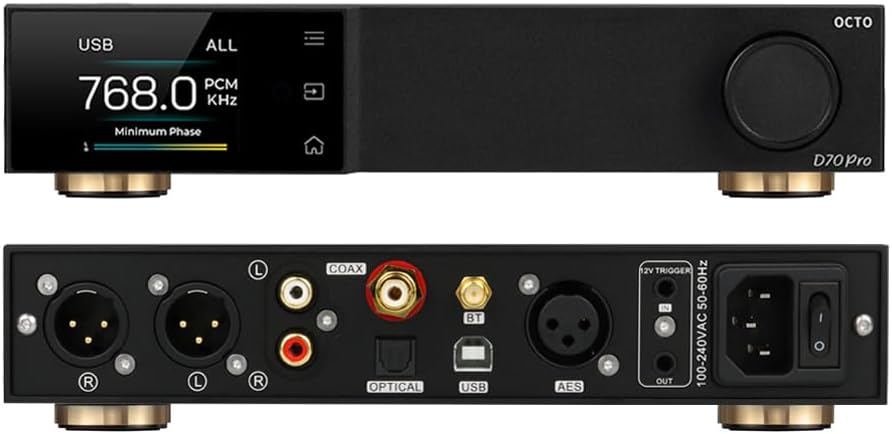

Topping D70 Pro OCTO Hi-Res DAC: 8X CS43198 Flagship Chips, Bluetooth5.1 Wireless Audio DAC, USB/AES/BT/Opt/Coax Input XLR/RCA Output, Home Audio DA Converters, Preamp DAC with Color Display (Silver)
Product details
| Management number | 215163743 | Release Date | 2026/04/12 | List Price | $199.60 | Model Number | 215163743 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
TOPPING D70 Pro OCTO 8* CS43198 Fully Balanced DAC D70 Pro OCTO DAC parameters (Line Out/USB In@96kHz) THD+N (A-wt) RCA: <0.00008% @1kHz XLR: <0.00007% @1kHz THD @90kBw (No-wt) RCA: <0.0004 % @20-20kHz XLR: <0.0002% @20-20kHz SNR (A-wt) RCA: 128dB @1kHz XLR: 134dB @1kHz Dynamic Range (A-wt) RCA: 128dB @1kHz XLR: 1347dB @1kHz Frequency Response RCA: 20Hz-20kHz (±0.05dB), 20Hz-40kHz (±0.2dB) XLR: 20Hz-20kHz (±0.05dB), 20Hz-40kHz (±0.2dB) Output Level RCA: 2.1Vrms @0dBFS (4V Mode), 2.6Vrms @0dBFS (5V Mode) XLR: 4.2Vrms @0dBFS (4V Mode), 5.2Vrms @0dBF S (5V Mode) Noise (A-wt) RCA: <1.0uVrms XLR: <1.0uVrms Channel Crosstalk RCA: - 124dB @ 1kHz XLR: -149dB @1kHz Channel Balance RCA: 0.3dB XLR: 0.3dB Output Impedance RCA: 50Ω XLR: 100Ω Product size: 22.2 x 17.6 x 4.8CM Accessories 1 * D70 Pro OCTO 1 * USB cable 1 * AC cable 1 * Remote control 1 * Quick Start Guide 1 * Bluetooth Antenna
- ☞ The D70 Pro OCTO dac is equipped with 8 Cirrus Logic flagship chips—CS43198. The ability to restore music has reached a new level, with THD+N <0.00007%, SNR 134dB, and perfect details.
- ☞ The full-color screen and three touch buttons of the D70 Pro OCTO introduce a refreshing UI experience. Whether you're toggling playback information, FFT, or VU, the vibrant colors pull you in, creating a customizable visual delight.
- ☞ D70 Pro OCTO DAC provides Bluetooth 5.1 connectivity, supports LDAC/aptX-Adaptive/ aptX HD/aptX/AAC/SBC audio encoding. Set your music indulge in a better sound experience without the clutter of cables.
- ☞ Using XMOS stable and reliable third-generation solution XU316, USB input supports PCM768kHz/32bit and DSD512 audio decoding, and is suitable for a variety of computer operating systems.
- ☞ Whether you need RCA single-ended output, XLR balanced output, or open two outputs, D70 Pro OCTO can meet your needs. The output mode can be switched at will to adapt to different equipment and performance requirements.
- If you have any questions during use, AOSHIDA will quickly guide you to solve them.
| Brand | AOSHIDA |
|---|---|
| Material | Aluminium |
| Item Weight | 3.39 pounds |
| Manufacturer | TOPPING |
| Mounting Type | Wall Mount |
| Interface Type | USB |
| Number of Pins | 46 |
| Item model number | D70 Pro OCTO |
| Number of Channels | 2 |
| Product Dimensions | 8.74"L x 6.93"W |
