Umigy 2 Pack 70/5 uF 70+5 MFD 370/440VAC Dual Run Round Capacitor, CBB65B Air Conditioner Capacitors for AC Motor Run, Condenser Straight Cool, Heat Pump, Fan Start, Pool Pump, HVAC Capacitor
Product details
| Management number | 218165148 | Release Date | 2026/05/03 | List Price | $12.00 | Model Number | 218165148 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features: Our dual run circular start capacitors are safe, reliable and durable to enhance your HVAC experienceSpecifications: Model: CBB65B(Universal model)Capacity: 70/5ufTolerance: +-6%Surface material: metalRated voltage: 370V/440VACSafety rated: 10, 000 AFCFrequency: 50 / 60HzCapacitor dimension: height 4.96 inch, diameter 2.63 inchOperating temperature: -40 ℃ to +70℃/-104℉ to +158℉Package includes: 2xAC motor capacitorsNotes: Manual measurement, please allow slight errors on size. The color may exist a slight difference due to different screen displays.
- Product Parameters: 2 pack air conditioner capacitor CBB65B, 70+5MFD 70/5uf±6%, 370/440VAC, 50/60Hz; Operating temperature: -40℃ to 70℃ / -104℉ to 158℉; Dimension: height 4.96 inch, diameter 2.63 inch

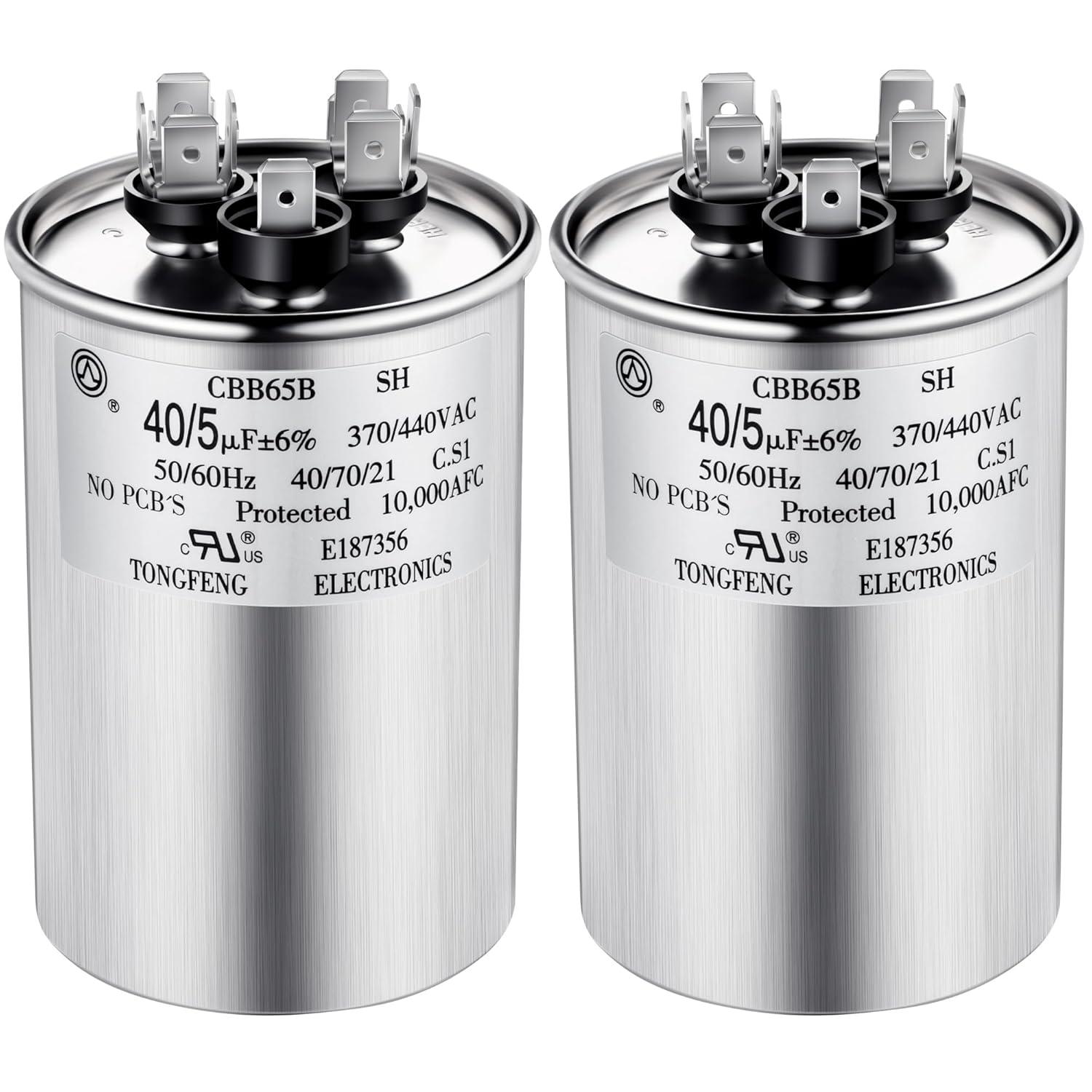

- Easy To Install: our dual run capacitor has three terminals on the top, labeled "Herm"/"H" for compressor motor, "Fan"/"F" for fan, and "C" for common; Labeled terminals can be replaced directly without changing wiring or adapters; Please note: for safety reasons, please turn off before installing the CBB65B ac capacitor power supply
- Safe and Reliable: AC motor capacitors comply with American standards EIA-456-A, IEC 60252-1: 2001, and are certified by UL, safe and reliable; Adopt S1 safety standard and equipped with explosion proof pressure switch 10000AFC safety level to ensure safety protection during operation
- Wide Range Of Applications: CBB65B dual run round capacitor can be applied in air conditioner, AC unit fan motor start, heat pump, condenser straight cool, pool pump, hvac capacitors
- Capacitor Replacement: 70/5 uF capacitors replacement compatible with 97F9838, 97F9838BZ3, Z97F938, 12786, RC0108, 97F9849, C3DR405, C3405R, TRCFD405, Z97F9848BZ2, P291-4054RS, P291-4053RS, TT-CAP-40/5/440R, TP-CAP-40/5/440R, HC98CA041, HC98JA041, HC98CA040, HC93CZ035, HCKS400D050R440Z
| Brand Name | Umigy |
|---|---|
| Item Shape | Round |
| Capacitance | 70 Microfarad |
| Item Weight | 1.76 Pounds |
| Part Number | MEQ-Umigy-2701 |
| Manufacturer | Umigy |
| Material Type | Metal |
| Mounting Type | Snap-In Mount |
| Maximum Voltage | 440 Volts |
| Operating Voltage | 440 Volts |
| Capacitance Tolerance | 6 |
| Item Dimensions W x H | 5.71"W x 2.95"H |
| Upper Temperature Rating | 70 Degrees Celsius |
| Maximum Storage Temperature | 70 Degrees Celsius |
